1000ppr Nema34 Closed Loop Stepepr Motor With WPLF90 1:3 90 Degree Angle Gearbox

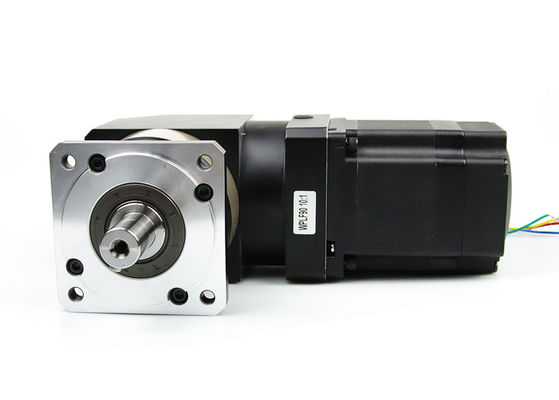

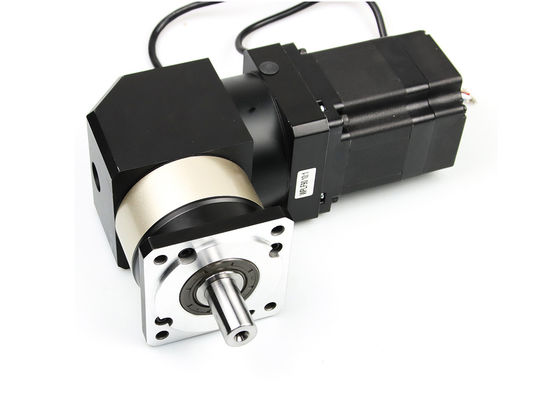

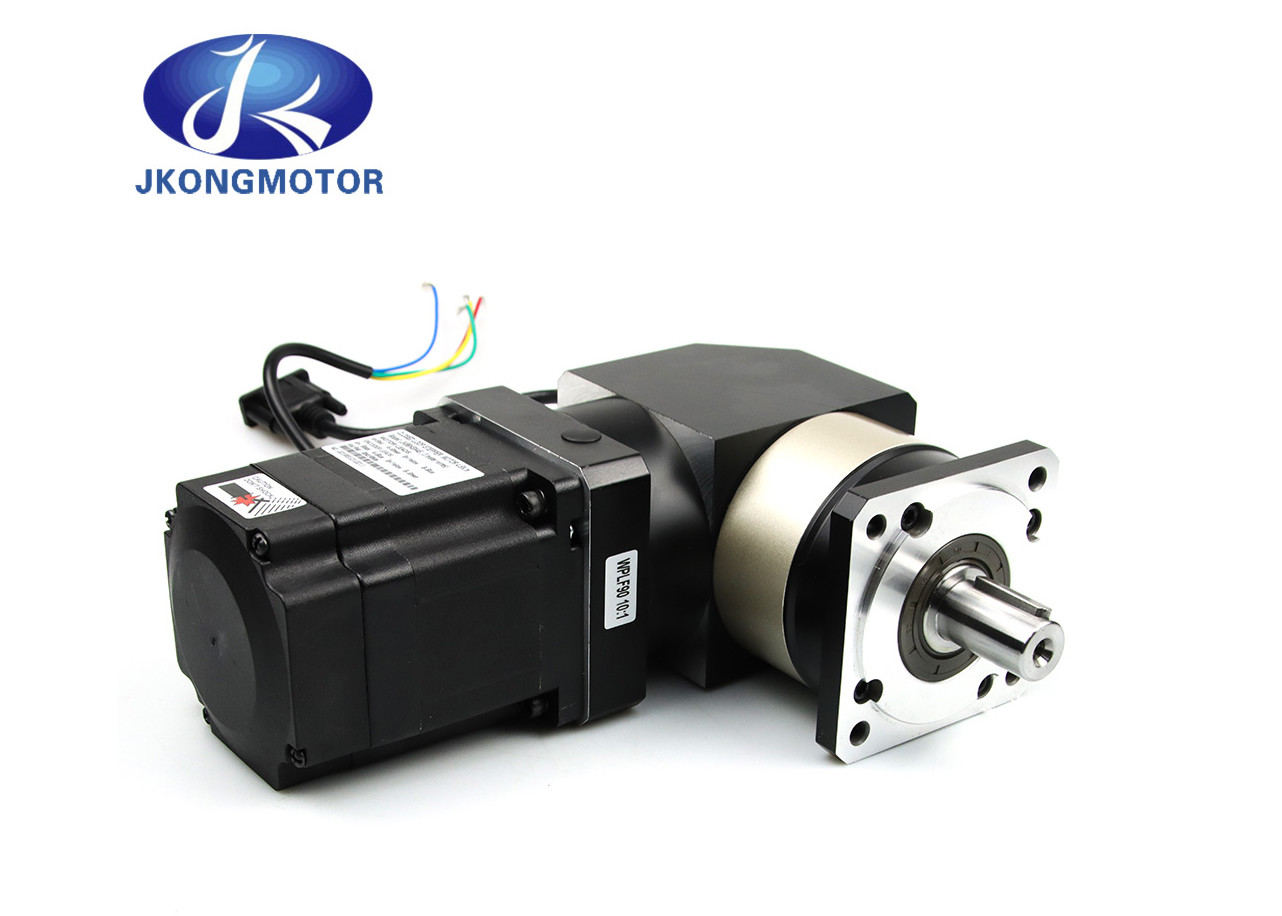

Nema34 closed loop stepepr motor 1000ppr with WPLF90 1:3 90 degree angle gearbox

In theory, a gearbox could be used to increase torque, but this is where the low speed of stepper motors becomes a problem. Adding a 10:1 gear reducer to a 1,200 RPM stepper motor might boost the torque by an order of magnitude but it will also drop the speed to 120 RPM. If the motor is being used to drive a ball-screw actuator or similar, it probably will not deliver sufficient speed to satisfy the needs of the application.

1.Genaral Specification of stepper motors:

• Step Angle(degrees): 1.8 Degree
• Phase: 2
• Type: Hybrid
• Model Number: NEMA34
• Model: JK86HSN45+WPLF90
• Holding Torque: 46kg.cm;
• Current / Phase: 6A
• Motor length: 78mm
• Encoder length: 28.5mm
• Diameter of shaft: 14mm
• shaft length: 40mm
• size: Approximately 86x86x78mm


2.Electrical Specification of Nema34 closed loop step motor:

We produce gearbox ratio include 1:3,1:10.

3.Details of JK86HSN45 hybrid stepper motor with 90 drgree angle gearbox:


4.Produce equipment:



5.Production Process:

6.Advantages of hybrid 57mm Stepper Motor

The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   7.Applications of Nema23/57mm electric motor:

As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
They are used in numeric control of machine tools.
Used in tape drives, floppy disc drives, printers and electric watches.
The stepper motor also use in X-Y plotter and robotics.
It has wide application in textile industries and integrated circuit fabrications.
The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
Stepper motors of microwatts are used in the wrist watches.
In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
