| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | DM860E |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$33 ~ US$35 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Name: | Stepper Motor Controller | Supply Voltage: | 24VDC - 80VDC |
|---|---|---|---|
| Current: | 2.4A - 7.2A | Weight: | 600g |
| Certified: | CE ROHS | Matched Motor: | Nema23/24/34/42 Stepping Motor |
| Color: | Black,white | Certification: | CE, ROHS, ISO9001 |
| Advantage: | Speed Stability And Control Convenient, No Need Computer Or Pulse Generator To Drive Stepper Motor | MOQ: | 3pcs |
| High Light: | Nema34 cnc step driver,DM860E cnc step driver,Nema34 stepper motor dm860e |
||

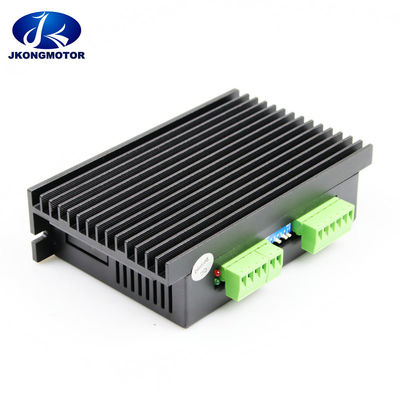

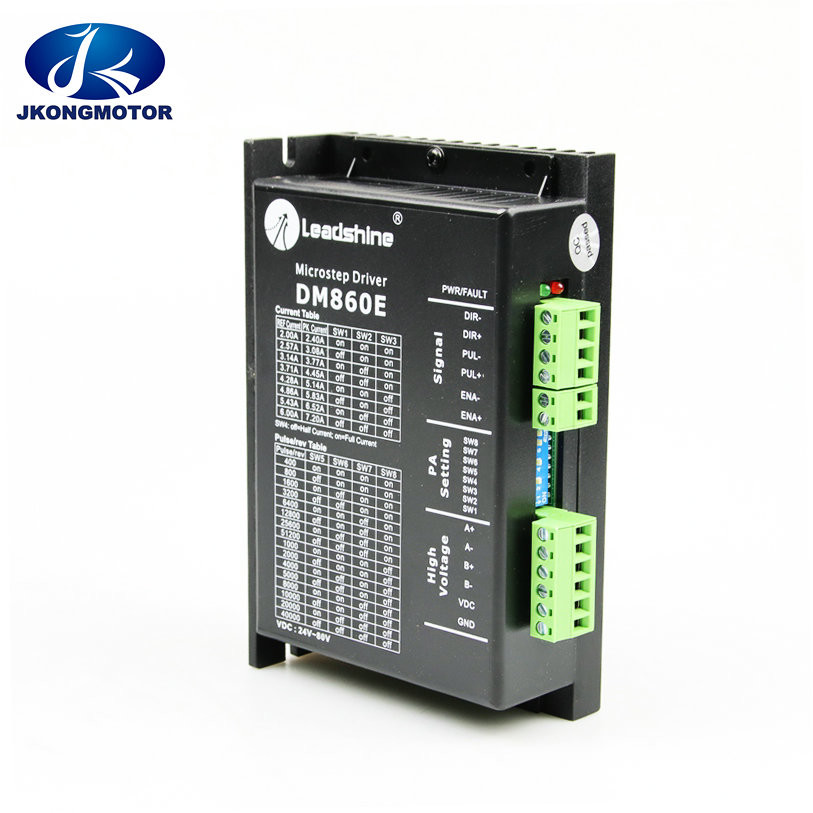

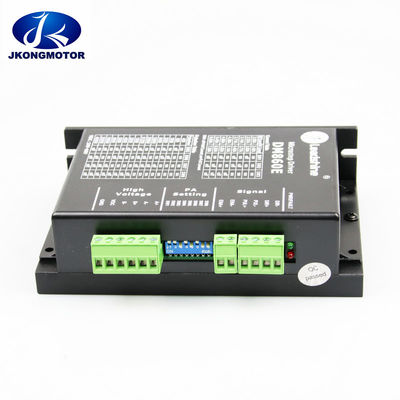

DM860E cnc step drive digital 24V~80VDC Leadshine Nema34 cnc stepper motor driver
The DM860E is a digital stepper drive with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper drive is able to power 2-phase and 4 phase stepper motors smoothly with optimal torque and low motor heating & noise. Its operating voltage is 24-80VDC and it can output up to 7.2A current. All the micro step and output current are done via DIP switches. Therefore, the DM860E are ideal choices for applications requiring simple step & direction control of NEMA 23, 24, 34, and 42 stepper motors.
Features:
Electrical Specifications:
| Parameters | DM860E | |||
| Min | Typical | Max | Unit | |
| Output Current | 2.4 | - | 7.2 | A |
| Supply Voltage | 24 | 48,68 | 74 | VDC |
| Logic signal current | 7 | 10 | 16 | mA |
| Pulse input frequency | 0 | - | 200 | kHz |
| Minimal Pulse Width | 2.5 | - | - | μS |
| Minimal Direction Setup | 5.0 | - | - | μS |
| Isolation resistance | 500 | MΩ | ||
Environment:
| Cooling | Natural Cooling or Forced cooling | |
| Operating Environment | Environment | Avoid dust, oil fog and corrosive gases |
| Operating Environment | Ambient Temperature | 0°C － 65°C (32°F - 149°F) |
| Operating Environment | Humidity | 40%RH－90%RH |
| Operating Environment | Operating Temperature | 0°C － 50°C (32°F - 122°F) |
| Operating Environment | Vibration | 10-50Hz / 0.15mm |
| Storage Temperature | -20°C － 65°C (-4°F - 149°F) | |
| Weight | Approx. 510g (1.13 lbs) | |
Applications:
The DM860E stepper drive are designed to power 2 phase (1.8°) or 4-phase (0.9°) NEMA 23, 24, 34, and 42 hybrid stepper motors. It can be easily adopted in many industries (CNC, medical, automation, packaging…), such as X-Y tables, engraving machines, labeling machines, mills, plasma, laser cutters, pick and place devices, and so on. Its excellent performance, simple design, and easy setup make it ideal for many step & direction control type applications.
