| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK80BLS01-16IE |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$49~US$55 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Nema: | 80mm Round Bldc Motor | Holding Torque: | 0.28N.m |
|---|---|---|---|
| Motor Length: | 91.5mm | Number Of Phase: | 3phase |
| Number Of Poles: | 8 | Rated Voltage: | 24v |
| Rated Speed: | 2500rpm | Rated Power: | 60w |
| Matching Driver: | JKBLD120 | Degree Of Protection: | IP30 |
| Application: | Blower | ||
| High Light: | integrated Brushless DC Motor,0.28Nm Brushless DC Motor,integrated 3 phase bldc motor |
||
80mm round BLDC 0.28N.m 2500rpm option with controller integrated bldc motors
1.Production description:
| Brand Name: | Jkongmtor | Product Name: |
Bldc motor with integrated driver |
| Model Name: | JK80BLS01-16IE | Number of Poles: | 4 |
| Resistance/ Phase: | 0.68ohms | Nominal Voltage: | 24V |
| Speed: | 2500 rpm | Current: | 0.8A |
| Rated Torque: | 0.28N.m | Rated Speed: | 1950 rpm |
| Output Power: | 60w | Torque Constant: | 0.09N.m/A |
| Back EMF constant: | 9.6v/krpm | Insulation Class: | B |
| Size: | 80x80mm | Body Length: | 91.5mm |

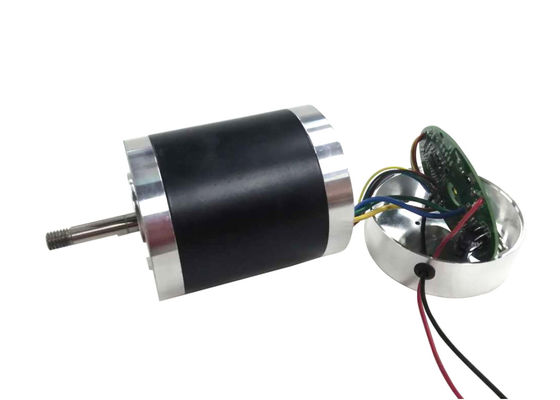

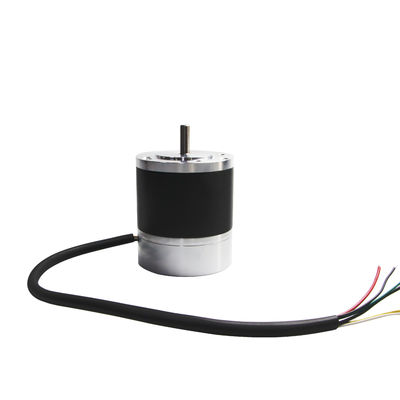

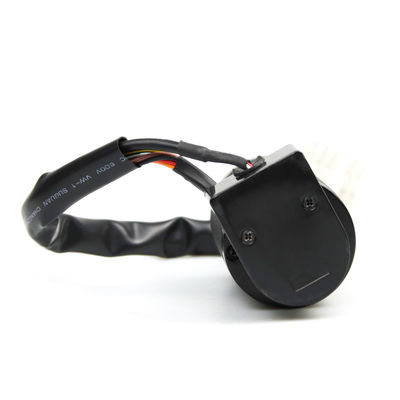

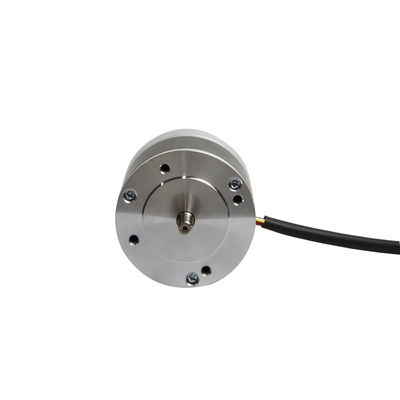

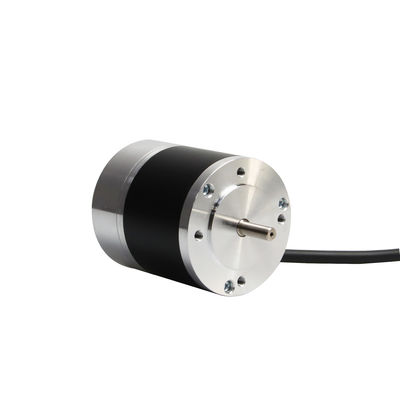

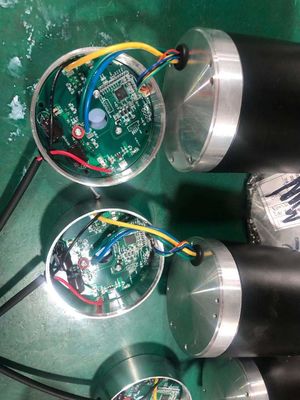

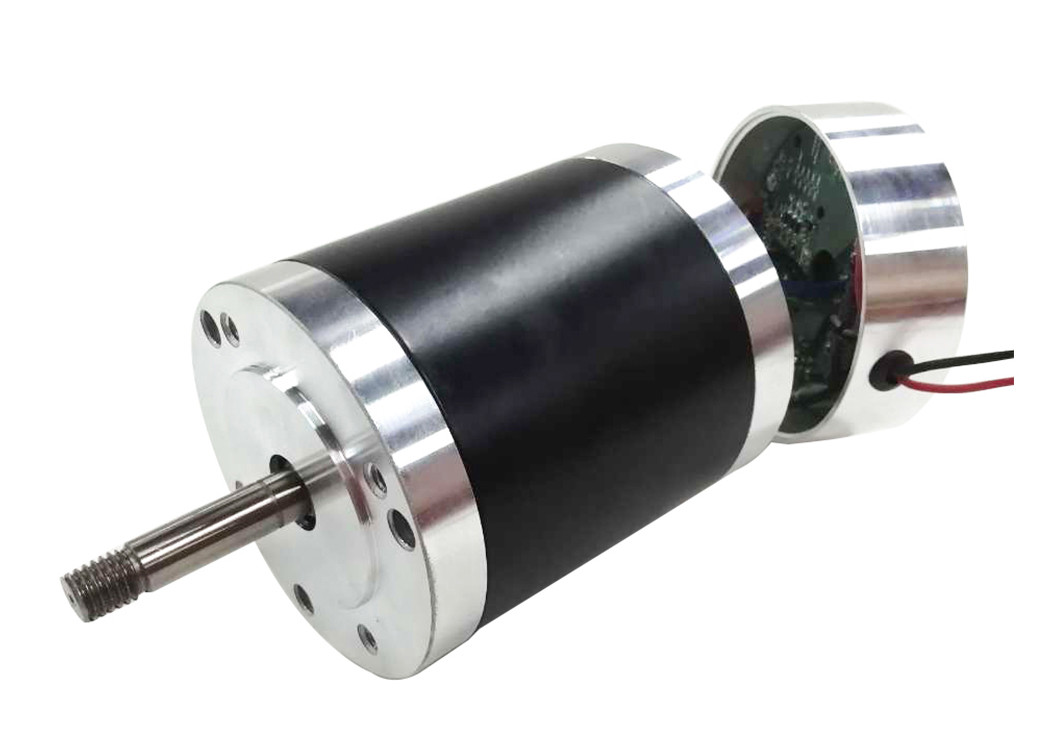

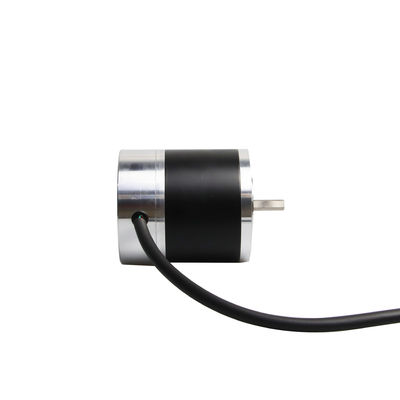

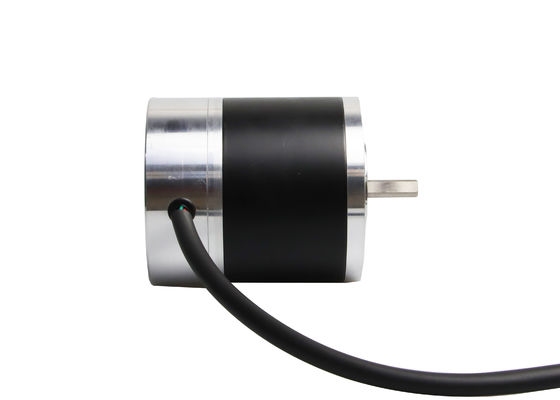

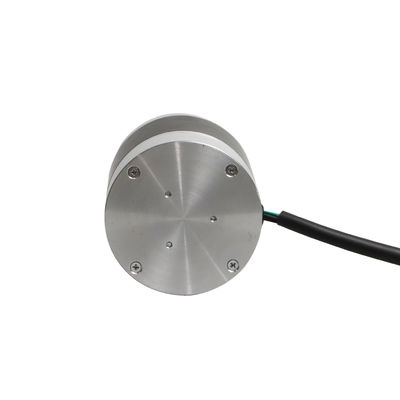

2.Product photos:
Understanding how brushless DC motors work when using them
Brushless DC motors are electric motors that do not require the consumable brushes and commutator. They benefit from quiet operation together with long life and low maintenance.
Instead of brushes and a commutator, driving a brushless DC motor is done electronically using a drive circuit. The drive circuit is needed to turn semiconductor switches on and off in the correct sequence to generate the rotating magnetic field that causes the motor to turn.
We hope that the information provided here will prove useful to you.
How long can a brushless motor run continuously?
Operating Life:
Brushed motor life is limited by the brush type and can attain 1,000 to 3,000 hours on average, while brushless motors can attain tens of thousands of hours on average, as there are no brushes to wear. The limiting factor is the wear on the bearings.
