| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JK |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | 110ST-M05030 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$240~US$270 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-35days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 100000pcs/month |
| Brand: | JK | Model: | 110ST-M05030 |
|---|---|---|---|
| Frame Size: | 110mm | Holding Torque: | 5N.m |
| Rated Power: | 1.5KW | Rated Speed: | 3000Rpm |
| Rated Voltage: | 220V | Rated Current: | 6A |
| High Light: | closedloop AC Servo Motor,3000rpm AC Servo Motor,closedloop 220v servo motor |
||
1.5W 220V 5N.m 6A 3000rpm 110ST closed-loop control Ac servo motor kit
AC Servo motor Introduction:
AC servo motors are mostly used in industrial fields. AC servo motors are AC motors that rely on encoders. These types of servo motors work through controllers providing feedback and closed-loop control. They are known to function at a high accuracy and are easily controllable.
Specifications of 110ST Ac servo motor:
| Motor Type | 110ST-M02030 | 110ST-M04020 | 110ST-M04030 | 110ST-M05030 | 110ST-M06020 | 110ST-M06030 |
| Rated Power(KW) | 0.6 | 0.8 | 1.2 | 1.5 | 1.2 | 1.8 |
| Rated Voltage(V) | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated Current(A) | 2.5 | 3.5 | 5.0 | 6.0 | 4.5 | 6.0 |
| Rated Speed(rpm) | 3000 | 2000 | 3000 | 3000 | 2000 | 3000 |
| Rated Torque(N.m) | 2 | 4 | 4 | 5 | 6 | 6 |
| Peak Torque(N.m) | 6 | 12 | 12 | 15 | 12 | 18 |
| Voltage Constant(V/Krpm) | 56 | 79 | 54 | 62 | 83 | 60 |
| Torque Coefficient(N.m/A) | 0.8 | 1.14 | 0.8 | 0.83 | 1.3 | 1.0 |
| Rotor Inertia(Kg.㎡) | 0.31×10-4 | 0.54×10-4 | 0.54×10-4 | 0.63×10-4 | 0.76×10-4 | 0.76×10-4 |
| Line-Line Resistance(Ω) | 3.6 | 2.41 | 1.09 | 1.03 | 1.46 | 0.81 |
| Line-Line Inductance(mH) | 8.32 | 7.3 | 3.3 | 3.43 | 4.7 | 2.59 |
| Electrical Time Constant(ms) | 2.3 | 3 | 3.0 | 3.33 | 3.2 | 3.2 |
| Weight(Kg) | 4.5 | 6 | 6 | 6.8 | 7.9 | 7.9 |
| Insulation Class | Class F | |||||

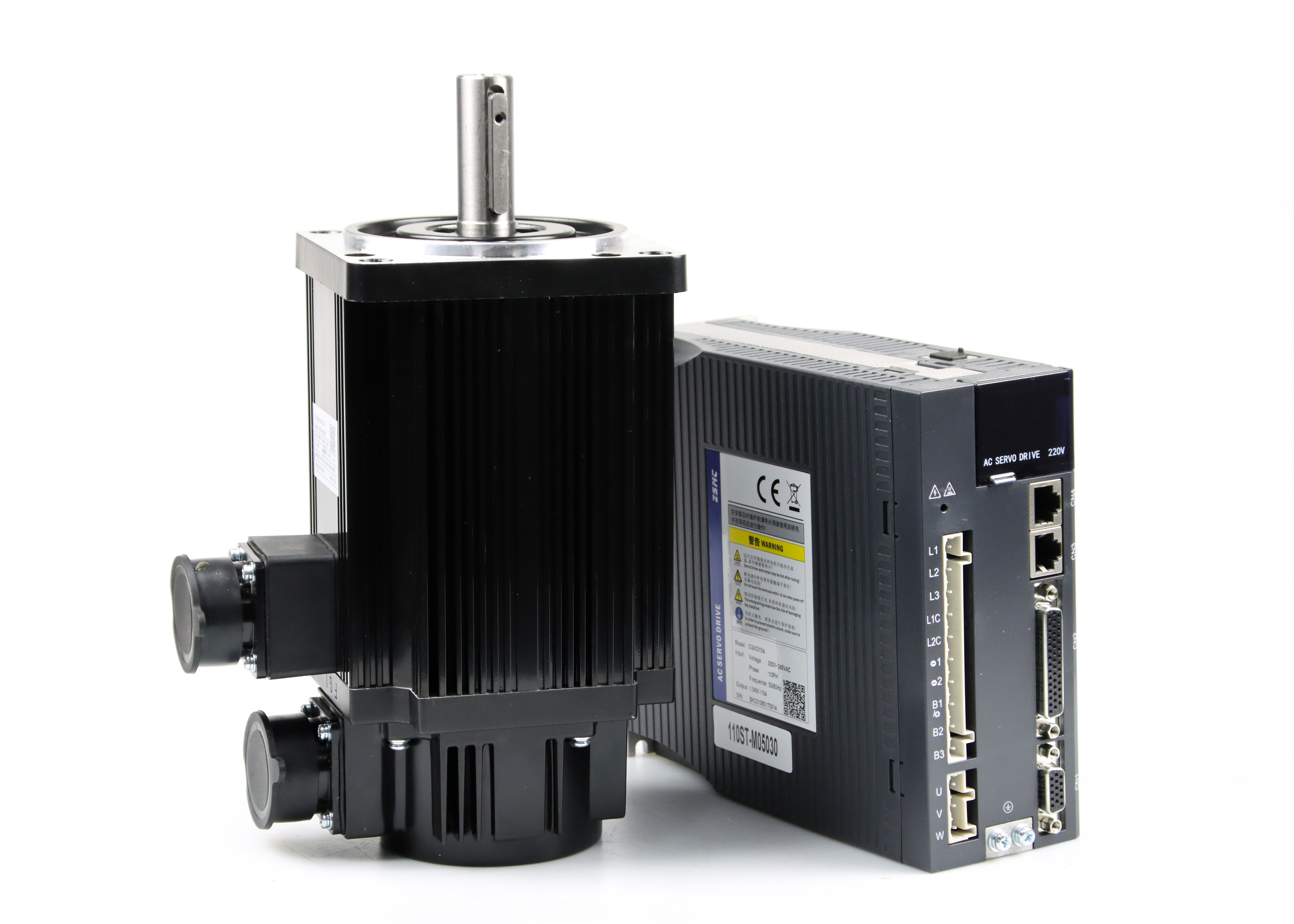

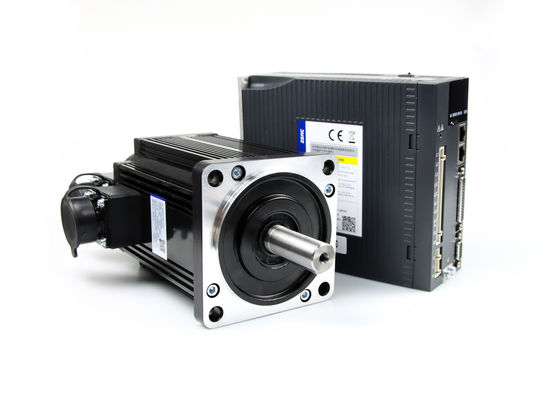

Details of Servo motor:
Servo motor Features:
These are low weight devices.
It offers reliability as well as stability in operation.
There is not much noise generated at the time of operation.
It offers almost linear torque-speed characteristics.
As brushes and slip rings are not present here thus it reduces maintenance cost.
Applications of AC Servo motors:
Due to the various advantages offered by the AC servomotors, these majorly finds applications in the instruments that operate on servomechanism, in position controlling devices, computers. Along with this these also find applications in tracking systems, machine tools and robotics machinery.
