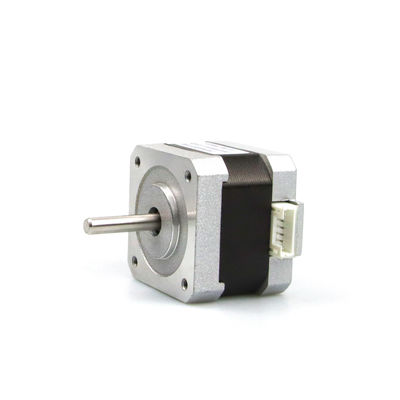

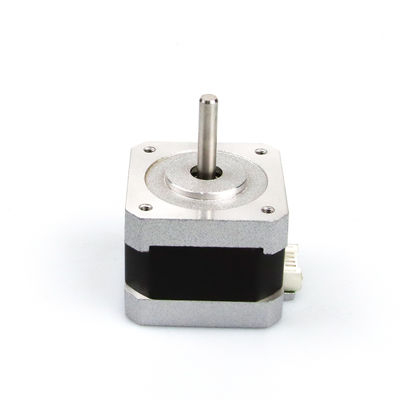

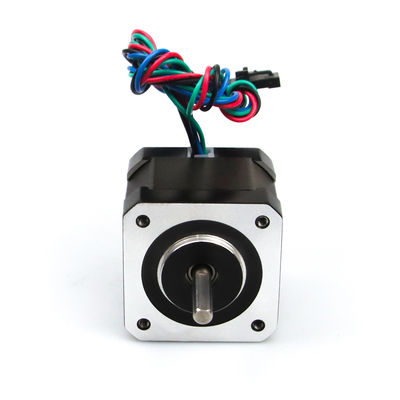

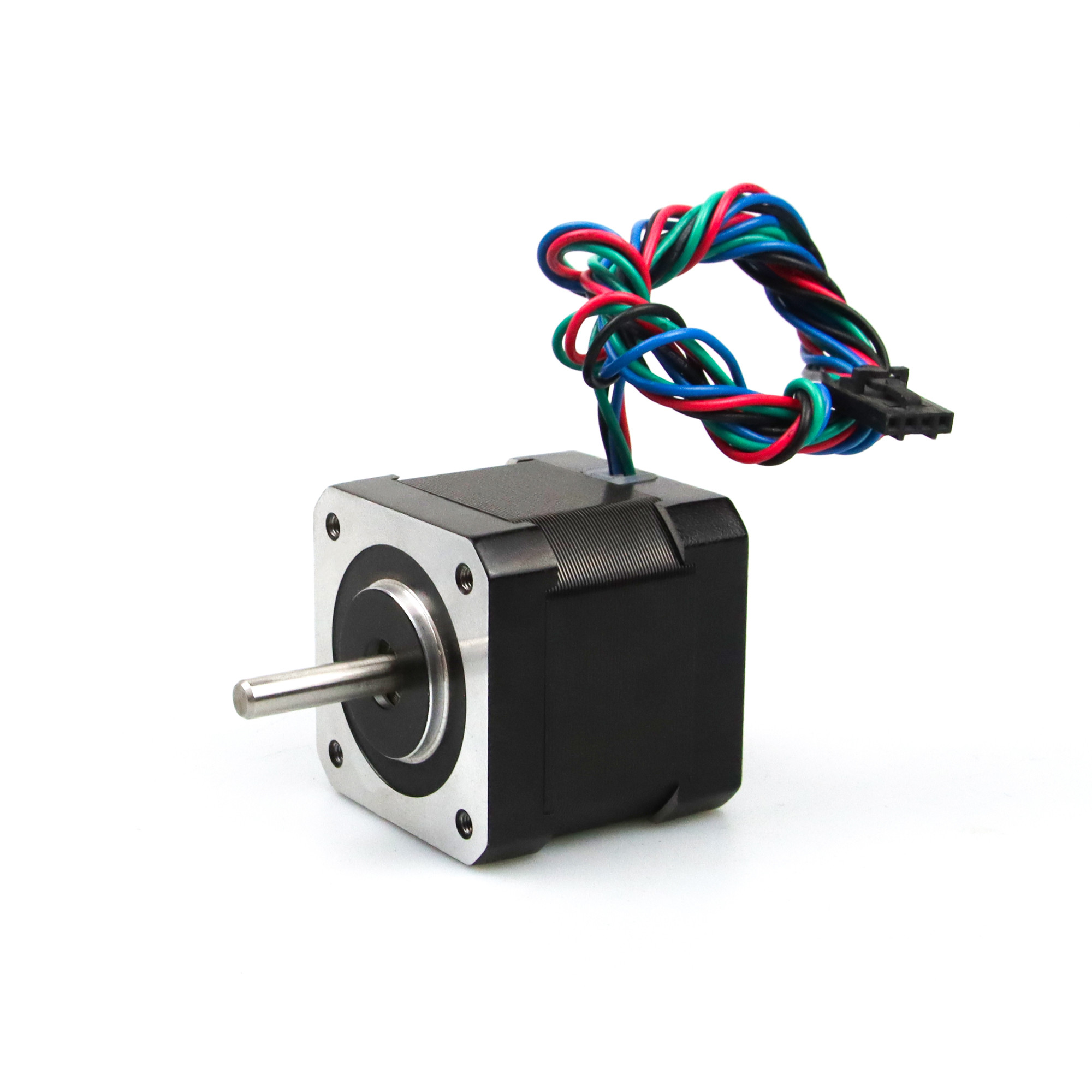

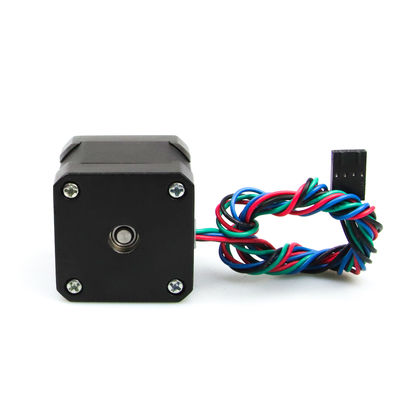

2 Phase 1.4kg.Cm 0.7Amp 3D Printers Nema 17hs4023 Motor

2 Phase 1.4kg.Cm 0.7Amp 3D Printers Nema 17hs4023 Motor

2 Phase 1.4kg.Cm 0.7Amp 3D Printers Nema 17hs4023 Motor
video
2 Phase 1.4kg.Cm 0.7Amp 3D Printers Nema 17hs4023 Motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: 42HS4023
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$3~US$8
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Shaft: Single Or Double Leads: 4
Current: 0.7A Holding Torque: 1.4kg.cm
Step Angle: 1.8 Degree Weight: 0.15kg
Diameter: 42mm Length: 23mm
Usage: 3D Printer Color: Black
High Light:

3D Printers nema 17hs4023

,

0.7Amp nema 17hs4023

,

2 Phase 17hs4023 Motor

17HS4023 Nema17 2 Phase 1.4kg.cm 0.7Amp Stepper Motor for 3D Printers
Product Name: Nema17 Stepper Motor
Model No.: 17HS4023
Number of Phase: 2 Phase
Stepper Angle: 1.8 Degree
Current/Phase: 0.7A
Holding torque: 1.4kg.cm
Diameter: 42mm
Length: 23mm
Usage: It is widely used in 3D printers, small CNC, robot projects, stage lighting, laser engraving, automation equipment, non-standard equipment and laser engraving machines, etc.

The price is just for your reference, Pls contact me for latest price.

2 Phase 1.4kg.Cm 0.7Amp 3D Printers Nema 17hs4023 Motor 0



1.Genaral Specification:

 Item  Specifications
 Step Angle  1.8°
 Temperature Rise  80℃max
 Ambient Temperature  -20℃~+50℃
 Insulation Resistance  100 MΩ Min. ,500VDC
 Dielectric Strength  500VAC for 1minute
 Shaft Radial Play  0.02Max. (450g-load)
 Shaft Axial Play  0.08Max. (450g-load)
 Max. radial force  28N (20mm from the flange)
 Max. axial force  10N


2.Electrical Specification:

Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  ( °) (L)mm A Ω mH kg.cm No. g.cm g.cm Kg
JK42HS34-1334 1.8 34 1.33 2.1 2.5 2.2 4 120 34 0.22
JK42HS34-0406 1.8 34 0.4 24 15 1.6 6 120 34 0.22
JK42HS34-0956 1.8 34 0.95 4.2 2.5 1.6 6 120 34 0.22
JK42HS40-0406 1.8 40 0.4 30 30 2.6 6 150 54 0.28
JK42HS40-1704 1.8 40 1.7 1.5 2.3 4.2 4 150 54 0.28
JK42HS40-1684 1.8 40 1.68 1.65 3.2 3.6 4 150 54 0.28
JK42HS40-1206 1.8 40 1.2 3 2.7 2.9 6 150 54 0.28
JK42HS48-0406 1.8 48 0.4 30 25 3.1 6 260 68 0.35
JK42HS48-1684 1.8 48 1.68 1.65 2.8 4.4 4 260 68 0.35
JK42HS48-1206 1.8 48 1.2 3.3 2.8 3.17 6 260 68 0.35
JK42HS60-0406 1.8 60 0.4 30 39 6.5 6 280 102 0.5
JK42HS60-1704 1.8 60 1.7 3 6.2 7.3 4 280 102 0.5
JK42HS60-1206 1.8 60 1.2 6 7 5.6 6 280 102 0.5


3.Dimensions: (Unit=mm)
2 Phase 1.4kg.Cm 0.7Amp 3D Printers Nema 17hs4023 Motor 1

4.Wiring Diagram:

2 Phase 1.4kg.Cm 0.7Amp 3D Printers Nema 17hs4023 Motor 22 Phase 1.4kg.Cm 0.7Amp 3D Printers Nema 17hs4023 Motor 3
5.Customized

  • Nema17 stepper motor with plug

2 Phase 1.4kg.Cm 0.7Amp 3D Printers Nema 17hs4023 Motor 4

  • Nema17 linear stepper motor

2 Phase 1.4kg.Cm 0.7Amp 3D Printers Nema 17hs4023 Motor 5

Advantages

  • Low cost for control achieved
  • High torque at startup and low speeds
  • Ruggedness
  • Simplicity of construction
  • Can operate in an open loop control system
  • Low maintenance
  • Less likely to stall or slip
  • Will work in any environment
  • Can be used in robotics in a wide scale.
  • High reliability
  • The rotation angle of the motor is proportional to the input pulse.
  • The motor has full torque at standstill (if the windings are energized)
  • Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
  • Excellent response to starting/stopping/reversing.
  • Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
  • The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
  • It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
  • A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

Applications

Computer controlled stepper motors are a type of motion-control positioning system. They are typically digitally controlled as part of an open loop system for use in holding or positioning applications.

In the field of lasers and optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems.

Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives, intelligent lighting, camera lenses, CNC machines and, more recently, in 3D printers.
