Detailed Product Description
Name: Stepper Motor Leads: 4
Current: Customized Holding Torque: Customized
Step Angle: Customized Shaft: Customized
Phase Resistance: Customized Phase Inductance: Customized
Voltage: Customized
High Light:

3/4 Axis Hybrid Stepper Motor

,

3/4 Axis Cnc Stepper Motor

,

Nema 34 Hybrid Stepper Motor

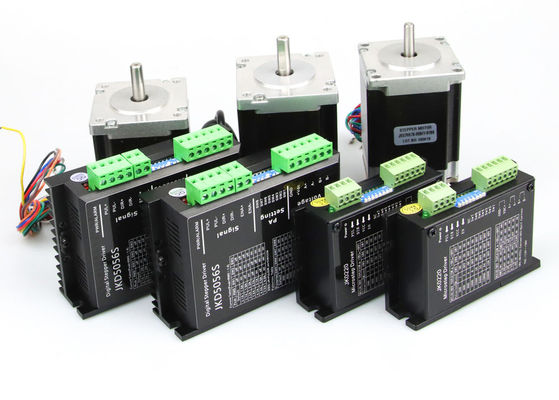

3/4 Axis Cnc Nema17/23/24/34 stepper motor with driver/brake/encoder/ball screw



1.Genaral Specification of hybrid stepper motor:

  • Step angle: 1.8°
  • Temperature rise: below 80 ℃
  • Ambient temperature: -20 ℃ ~ + 50 ℃
  • Insulation resistance: minimum 100MΩ, 500VDC
  • Dielectric strength: 500VAC for 1 minute
  • Shaft radial clearance: 0.02 max (450 g load)
  • Shaft axial clearance: 0.08Max. (450 g load)
  • Maximum radial force: 28N (20mm from flange)
  • Maximum axial force: 10N
  • size: Customized
  • Holding Torque: Customized
  • Current / Phase: Customized
  • Step Angle(degrees):1.8Degree or 0.9Degree

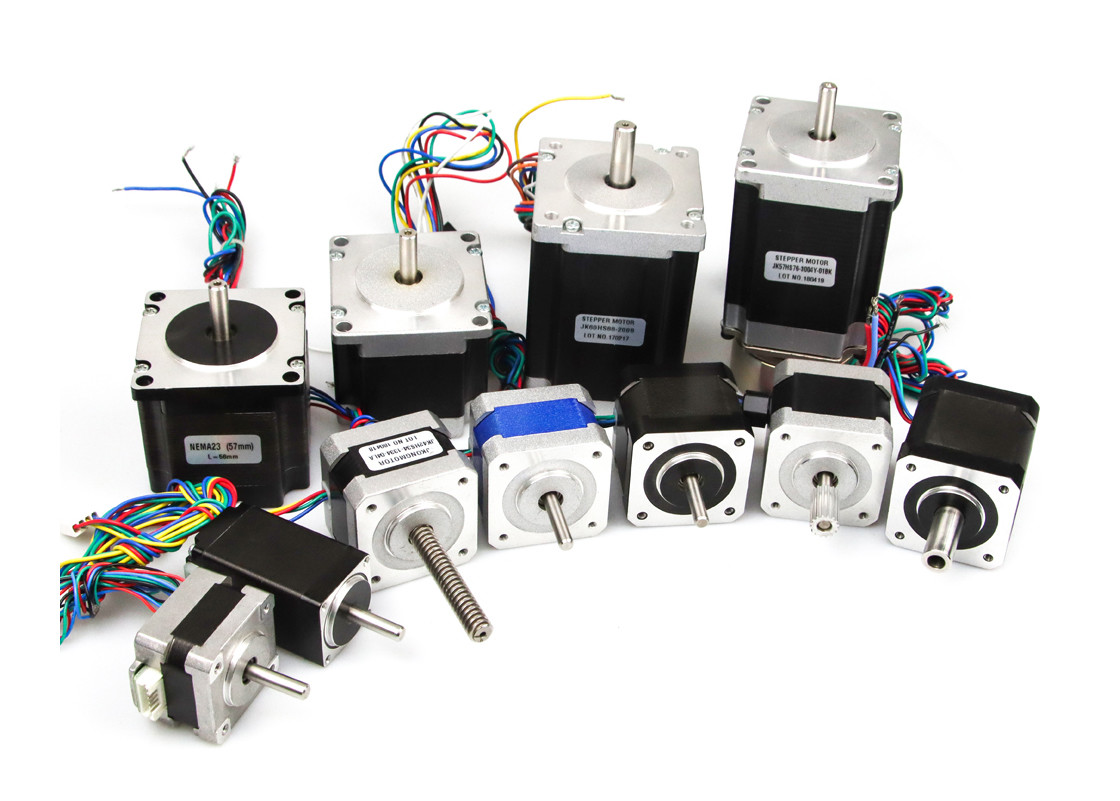

  • Stepper motor: nema8, nema11, nema14, nema17, nema23, nema24, nema34, nema42, nema52
  • Brushless dc motor: 22mm, 28mm, 36mm, 42mm, 42mm, 57mm, 60mm, 80mm, 110mm, 130mm
  • Phase:Customized
  • Model:Customized
  • Motor length:Customized
  • Diameter of axle:Customized



2.Electrical Specification of stepper morors:



Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  ( °) (L)mm A Ω mH kg.cm No. g.cm g.cm Kg
JK42HS34-1334 1.8 34 1.33 2.1 2.5 2.2 4 120 34 0.22
JK42HS34-0406 1.8 34 0.4 24 15 1.6 6 120 34 0.22
JK42HS34-0956 1.8 34 0.95 4.2 2.5 1.6 6 120 34 0.22
JK42HS40-0406 1.8 40 0.4 30 30 2.6 6 150 54 0.28
JK42HS40-1704 1.8 40 1.7 1.5 2.3 4.2 4 150 54 0.28
JK42HS40-1684 1.8 40 1.68 1.65 3.2 3.6 4 150 54 0.28
JK42HS40-1206 1.8 40 1.2 3 2.7 2.9 6 150 54 0.28
JK42HS48-0406 1.8 48 0.4 30 25 3.1 6 260 68 0.35
JK42HS48-1684 1.8 48 1.68 1.65 2.8 4.4 4 260 68 0.35
JK42HS48-1206 1.8 48 1.2 3.3 2.8 3.17 6 260 68 0.35
JK42HS60-0406 1.8 60 0.4 30 39 6.5 6 280 102 0.5
JK42HS60-1704 1.8 60 1.7 3 6.2 7.3 4 280 102 0.5
JK42HS60-1206 1.8 60 1.2 6 7 5.6 6 280 102 0.5



JK57HS41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
JK57HS51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
JK57HS64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
JK57HS76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
JK57HS82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
JK57HS100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3
JK57HS112-3004 1.8 112 3 1.6 7.5 3 4 1200 800 1.4
JK57HS112-4204 1.8 112 4.2 0.9 3.8 3.1 4 1200 800 1.4



JK86HS68-5904 67 5.9 0.28 1.7 3.4 4 0.8 1000 1.7
JK86HS68-2808 67 2.8 1.4 3.9 3.4 8 0.8 1000 1.7
JK86HS78-5504 78 5.5 0.46 4.0 4.6 4 1.2 1400 2.3
JK86HS78-4208 78 4.2 0.75 3.4 4.6 8 1.2 1400 2.3
JK86HS97-4504 97 4.5 0.66 3.0 5.8 4 1.7 2100 3.0
JK86HS97-4008 97 4.0 0.98 4.1 4.7 8 1.7 2100 3.0
JK86HS100-6004 100 6.0 0.36 2.8 7.0 4 1.9 2200 3.1
JK86HS115-6004 115 6.0 0.6 6.5 8.7 4 2.4 2700 3.8
JK86HS115-4208 115 4.2 0.9 6.0 8.7 8 2.4 2700 3.8
JK86HS126-6004 126 6.0 0.58 6.5 6.3 4 2.9 3200 4.5
JK86HS155-6004 155 6.0 0.68 9.0 13.0 4 3.6 4000 5.4
JK86HS155-4208 155 4.2 1.25 8.0 12.2 8 3.6 4000 5.4

Above only for representative products, products of special request can be made according to the customer request.



3.Drawing of Nema14/17/23/34 stepper motor:

 3/4 Axis CNC Nema 17/23/24/34 Hybrid Stepper Motor with Ball Screw/belt pulley 0

3/4 Axis CNC Nema 17/23/24/34 Hybrid Stepper Motor with Ball Screw/belt pulley 1

3/4 Axis CNC Nema 17/23/24/34 Hybrid Stepper Motor with Ball Screw/belt pulley 2
4.Produce equipment:

3/4 Axis CNC Nema 17/23/24/34 Hybrid Stepper Motor with Ball Screw/belt pulley 3

5.Production Process:
3/4 Axis CNC Nema 17/23/24/34 Hybrid Stepper Motor with Ball Screw/belt pulley 4

6.Advantages of hybrid Step Motor:



The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   7.Applications of electric motor:

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
