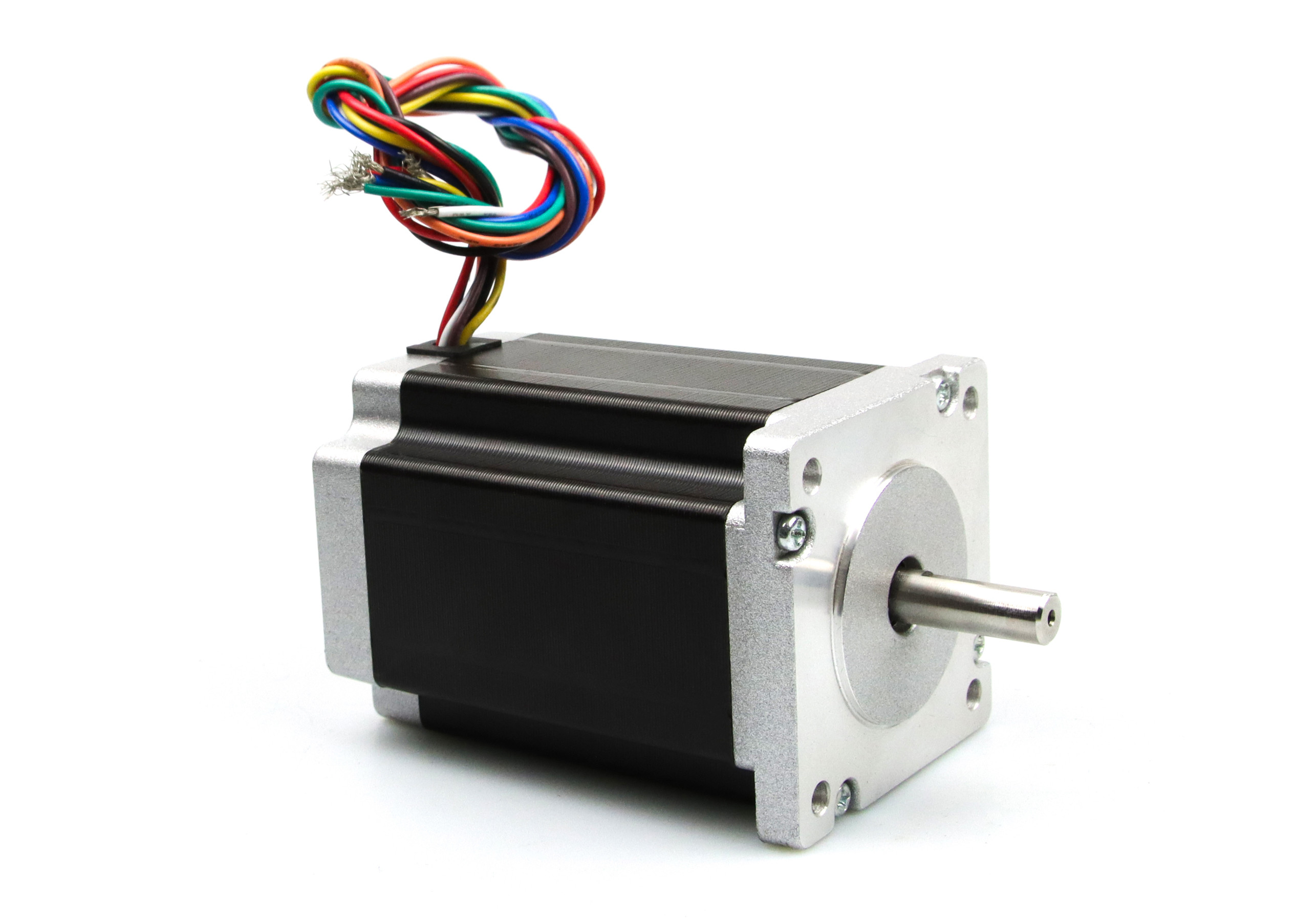

1.8° 60mm 2 Phase 2A 22kg.Cm 8 Wires Hybrid Nema 24 Stepper Motor

1.8° 60mm 2 Phase 2A 22kg.Cm 8 Wires Hybrid Nema 24 Stepper Motor

1.8° 60mm 2 Phase 2A 22kg.Cm 8 Wires Hybrid Nema 24 Stepper Motor
video
1.8° 60mm 2 Phase 2A 22kg.Cm 8 Wires Hybrid Nema 24 Stepper Motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK60HS88-2008YA-08
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$18~US$21.8
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Stepper Motor Leads: 8
Current: 2A Holding Torque: 22kg.cm
Step Angle: 1.8 Degree Shaft: 8mm
Phase Resistance: Phase Inductance: 6.8mH
Voltage: 6v Phase: 2
High Light:

Hybrid nema 24 stepper motor

,

8 Wires nema 24 servo motor

,

60mm nema 24 stepper motor

1.8° 60mm 2phase 2A 22kg.cm 8wires Nema 24 Hybrid Stepper Motor




1.Genaral Specification of hybrid stepper motor:



Item Specifications
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N





2.Electrical Specification of stepper morors:





Model No.

Mode of connection

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  (L)mm A Ω mH N.m No. g.cm g.cm1.8° 60mm 2 Phase 2A 22kg.Cm 8 Wires Hybrid Nema 24 Stepper Motor 0 Kg
JK60HS56-2008 Unipolar 56 2 1.8 3. 1.17 8 700 300 0.77
Parallel 2.8 0.9 3.6 1.65
Series 1.4 3.6 14.4 1.65
JK60HS67-2008 Unipolar 67 2 2.4 4.6 1.5 8 900 570 1.2
Parallel 2.8 1.2 4.6 2.1
Series 1.4 4.8 18.4 2.1
JK60HS88-2008 Unipolar 88 2 3 6.8 2.2 8 1000 840 1.4
Parallel 2.8 1.5 6.8 3.1
Series 1.4 6 27.2 3.1
JK60HS100-2008 Unipolar 100 2 3.2 6.4 2.8 8 1100 980 1.7
Parallel 2.8 1.6 6.4 4.0
Series 1.4 6.4 25.6 4.0
JK60HS111-2008 Unipolar 111 2.0 4.4 8.3 3.2 8 1200 1120 1.9
Parallel 2.8 2.2 8.3 4.5
Series 1.4 8.8 33.2 4.5

Above only for representative products, products of special request can be made according to the customer request.



3.Drawing of JK60HS stepper motor:

 1.8° 60mm 2 Phase 2A 22kg.Cm 8 Wires Hybrid Nema 24 Stepper Motor 1
4.Produce equipment:

1.8° 60mm 2 Phase 2A 22kg.Cm 8 Wires Hybrid Nema 24 Stepper Motor 2

5.Production Process:
1.8° 60mm 2 Phase 2A 22kg.Cm 8 Wires Hybrid Nema 24 Stepper Motor 3

6.Advantages of hybrid Step Motor:



The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   7.Applications of electric motor:

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.

1.8° 60mm 2 Phase 2A 22kg.Cm 8 Wires Hybrid Nema 24 Stepper Motor 4

1.8° 60mm 2 Phase 2A 22kg.Cm 8 Wires Hybrid Nema 24 Stepper Motor 5
