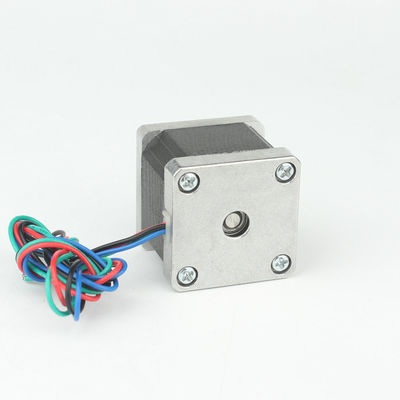

1.2NM Closed Loop Nema 23 Hybrid Stepper Motor With 8mm Round D Shaft

1.2NM Closed Loop Nema 23 Hybrid Stepper Motor With 8mm Round D Shaft

1.2NM Closed Loop Nema 23 Hybrid Stepper Motor  With 8mm Round  D Shaft
video
1.2NM Closed Loop Nema 23 Hybrid Stepper Motor  With 8mm Round  D Shaft
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK57HS76-2804
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $ 9 - 14 / Pieces
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Phase: 2 Type: Hybrid
Step Angle(degrees): 1.8 Degree Holding Torque: 1.2N.m 167oz.in
Current / Phase: 2.8A Max. Radial Force: 75N (20mm From The Flange)
Shaft Axial Play: 0.08Max(450g-load) Shaft Radial Play: 0.02Max(450g-load)
High Light:

1.2NM nema 23 stepper motor

,

8mm Shaft nema 23 stepper motor

,

1.2NM closed loop nema 23



1.8 Degree Nema23 Hybrid Stepper Motor 1.2N.m High Torque With 6.35mm / 8mm Round / D Shaft





Product Description:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N



Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  ( °) (L)mm A Ω mH N.m No. g.cm g.cm Kg
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68



Drawing:

1.2NM Closed Loop Nema 23 Hybrid Stepper Motor  With 8mm Round  D Shaft 0



1.2NM Closed Loop Nema 23 Hybrid Stepper Motor  With 8mm Round  D Shaft 11.2NM Closed Loop Nema 23 Hybrid Stepper Motor  With 8mm Round  D Shaft 2



Stepper Motor Advantages

  • Low cost for control achieved
  • High torque at startup and low speeds
  • Ruggedness
  • Simplicity of construction
  • Can operate in an open loop control system
  • Low maintenance
  • Less likely to stall or slip
  • Will work in any environment
  • Can be used in robotics in a wide scale.
  • High reliability
  • The rotation angle of the motor is proportional to the input pulse.
  • The motor has full torque at standstill (if the windings are energized)
  • Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
  • Excellent response to starting/stopping/reversing.
  • Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
  • The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
  • It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
  • A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.



Stepper Motor Applications

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
