| Phase: | 2-phase | Type: | Hybrid |
|---|---|---|---|
| Step Angle: | 1.8 Degree | Holding Torque: | 2.6kg.cm |
| Motor Length: | 34mm | Voltage Range: | 2.8V |
| Suitable Motor: | Nema 17 Stepping Motor | Stepper Driver Model: | JK0220 |
| Current: | 1.33A | Reduction Ratio: | 13.7 |
| High Light: | Hybrid nema 17 stepper motor,1.8 Degree nema 17 stepper motor,nema 17 hybrid stepper motor |
||

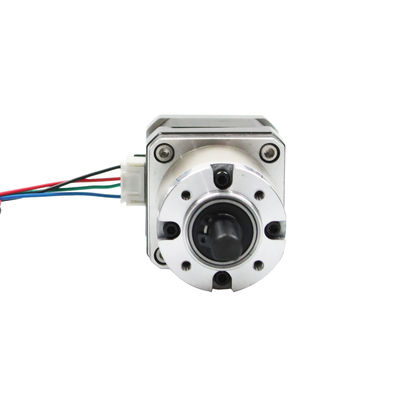

1.33A 2.6kg.cm 2.8V 1.8 Degree Nema 17 Stepper Motor with planetary gearbox
The Nema 17 Stepper Motor Bipolar with 13.7:1 Planetary Gearbox is a stepper motor with 34mm body and 1.33A rated current, integrated a planetary gearbox of 13.7:1 gear ratio. Adding a gearbox to a stepper motor system can improve the motor’s performance by decreasing the load-to-motor inertia ratio, increasing torque to the load, and reducing motor oscillations.
Compared to the other two types of stepper motors, hybrid stepper motors provide higher torque with smaller step angle and have a better dynamic property. With the development of science and technology, especially the development of permanent magnet materials, semiconductor technology and computer technology, these stepper motors have been widely used in industrial automation, robotics, textile and medical industries.
Electrical Specification of Nema 17 stepper motor gear reducer:
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step,no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
|
Housing Material |
Metal |
|
Bearing at Output |
Ball Bearings |
|
Max.Radial Load(12mm from flange) |
≤80N |
|
Max.Shaft Axial Load |
≤30N |
|
Radial Play of Shaft (near to Flange) |
≤0.06mm |
|
Axial Play of Shaft |
≤0.3mm |
|
Backlash at No-load |
1.5° |
42HS Hybrid Stepping Motor Specifications :
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
|
( °) |
(L)mm |
A |
Ω |
mH |
kg.cm |
No. |
g.cm |
g.cm |
Kg |
|
|
JK42HS34-1334 |
1.8 |
34 |
1.33 |
2.1 |
2.5 |
2.2 |
4 |
120 |
34 |
0.22 |
Specifications of 42mm stepper motor with gearbox:
|
Reduction ratio |
3.71 |
5.18 |
13.76 |
19.2 |
26.8 |
51 |
71 |
99.5 |
139 |
|
Number of gear trains |
1 |
2 |
3 |
||||||
|
Length(L2) mm |
27.3 |
35 |
42.7 |
||||||
|
Max.rated torque kg.cm |
20 |
30 |
40 |
||||||
|
Short time permissible torque kg.cm |
40 |
60 |
80 |
||||||
|
Weight g |
350 |
450 |
550 |
||||||
Details of Geared Stepper Motors Nema 17:
The matching driver of Nema17 stepper motor is: JKD0220
Applications of 42mm stepper motor gearbox :
Used for robots stepper motor, Electronic automatic equipment stepping motor, Medical instrument stepping motor, Advertising instrument stepper motor, Lighting& audio equipment stepper motor, Printer stepper motor, textile machinery stepper motor, Cnc router stepper motor. 3D printer
