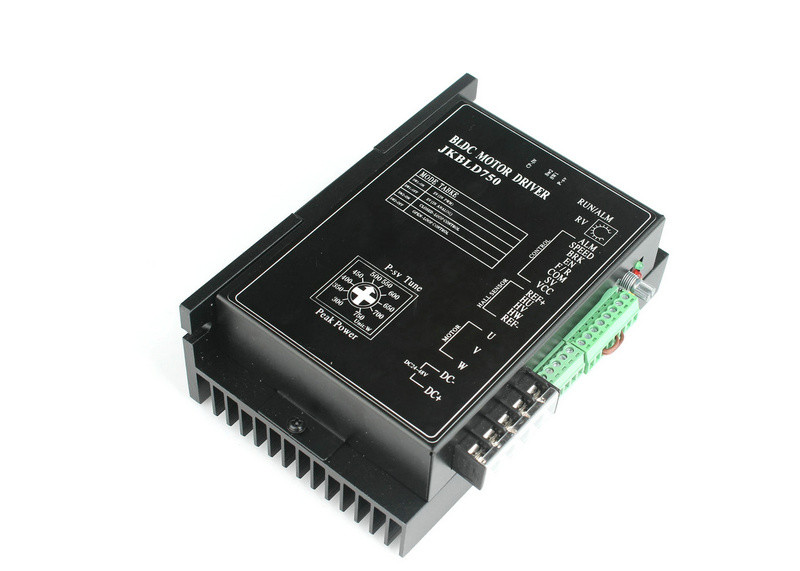

20000rpm 86BLS Brushless DC Motor Driver external potentiometer control

20000rpm 86BLS Brushless DC Motor Driver external potentiometer control

  • 20000rpm 86BLS Brushless DC Motor Driver external potentiometer control
  • 20000rpm 86BLS Brushless DC Motor Driver external potentiometer control
  • 20000rpm 86BLS Brushless DC Motor Driver external potentiometer control
  • 20000rpm 86BLS Brushless DC Motor Driver external potentiometer control
20000rpm 86BLS Brushless DC Motor Driver external potentiometer control
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JKBLD750
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$41.5~US$51.5
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Model No.: JKBLD750 Supply Voltage: 18VDC - 50VDC
Current: 25A - 45A Weight: 600g
Hall Sensor Voltage: 4.5V-5.5V Motor Speed: 0 - 20000rpm
Nema: Brushless Dc Driver External Potentiometer: 10KΩ
High Light:

Nema 86 Brushless DC motor Driver

,

Nema 86 B brushless dc driver

,

20000rpm Brushless DC motor Driver

JKBLD750 Nema34 / Nema 86 Motor Driver Three Phase 750W 48VDC 25A-45A



JKBLD750 brushless dc driver is suit the following three-phase sine wave power and 48V DC 750W brushless dc motor speed regulation, can provide an external potentiometer control, external analog voltage control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive & negative switching, combination of manual and automatic control.





Description:

The JKBLD750 BLDC motor drive is a high performance, cost-effective 3phase BLDC motor drive, which can provide power output Max 750VA.The design is based on advanced DSP technology and feature high torque, low noise, low vibration, PID speed loop, PID current loop, over current protection, over load protection and a combined use of manual speed adjustment and automatic speed adjustment.



Connection Definition



Mark Definition
DC+/DC- DC Power Input (DC24V~DC48V)
U,V,W Motor Lead Wire
Hu,Hv,Hw Hall Sensor Lead Wire
REF+ Hall Sensor Power Supply +
REF- Hall Sensor Power Supply -
VCC External Potentiometer Power Supply ( Internal Power Supply Only)
SV External Potentiometer ( No Connection When Adjusting Speed With Internal Potentiometer ) or Pulse Rate In                                                                Note
COM Common (Low Level/Ground)
F/R Direction: Low Level/CCW High Level or No Connection/CW                   Note
EN Enable: High Level/Stop Low Level/Run                                                    Note
BRK

Quick Brake: High Level/Stop Low Level/Run                                            Note

SPEED Speed Signal Output
ALARM Alarm Signal Output



Note①: Potentiometer/10KΩ or analog signal DC 0V~+5V (Change internal switch J1/DC0-10V).Turn off the internal potentiometer RV when using an external potentiometer to adjust the motor speed.

Note②:High level/5V (5mA)



Electrical Specifications





Parameter Min Rated Max Unit
Motor Hall Sensor Angle 120°/240°
DC Power Input 18 48 50 V
Drive Current Output 0 25 45 A
Suitable Motor Speed 0   20000 rpm
Hall Sensor Voltage 4.5 5 5.5 V
Hall Sensor Current   20   mA
External Potentiometer   10K   Ω

20000rpm 86BLS Brushless DC Motor Driver external potentiometer control 0



20000rpm 86BLS Brushless DC Motor Driver external potentiometer control 1

20000rpm 86BLS Brushless DC Motor Driver external potentiometer control 2

Speed Adjustment Instruction:

Motor Speed Adjusted By The Internal Potentiometer RV:
SW1/ Off (Factory setting)
Motor Speed Adjusted By Analog DC 0V~+5V Input:
SW1/ Off (Factory setting) set J1 (internal) as
(user Setting)
RV—Turn Off
Motor Speed Adjusted By Analog DC 0V~+10V Input:
SW1/ Off (Factory setting) set J1 (internal) as
(user Setting)
RV—Turn Off
Motor Speed Adjusted By Pulse Rate Input:
Pulse rate: 0K—3KHZ Speed linear modulation
Pulse amplitude: 5V
Pulse duty ratio: 50%
SW1/ On (User setting)
RV—Turn Off
J7 (Internal)/ Switch on with the jumper cap on J1 (User setting)
Motor Speed Quick Response Setting:
SW2/ On ( User setting): PID closed loop--quick speed response
SW2/Off (Factory setting): Open loop--Normal speed response
Motor Speed Signal Output:
Connecting SPEED and COM to get pulse output F=N*P/60
F—Pulse output frequency
P—Pole number of BLDC motor
Drive Alarm Output:
When drive alarm, it will break over with the port of COM and be low
level. The drive stop to work and alarm light run.
Lead Wire Connection: Take care of the sequence of U,V,W



Our Services:

We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..



Warranty:

  • We offer one year warranty.
  • Within the warranty period, if your item has any problems when you use it, please send us an e-mail with photos or video to show the problem.
  • The replacement of the products for free are considerable due to it's own defects during warranty period.
