| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK86BLS71 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$35~US$60 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Speed(rpm): | 3000rpm | Type: | Brushless DC Motor |
|---|---|---|---|
| Torque: | 0.7N.m | Size: | 86*86mm |
| Rated Voltage: | 48VDC | Rated Power: | 220w |
| Color: | Black | Application: | Turkish Barbecue Machine |
| High Light: | JK86BLS71,3000RPM brushless dc motor |
||

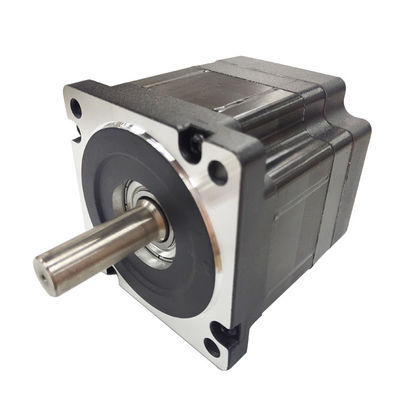

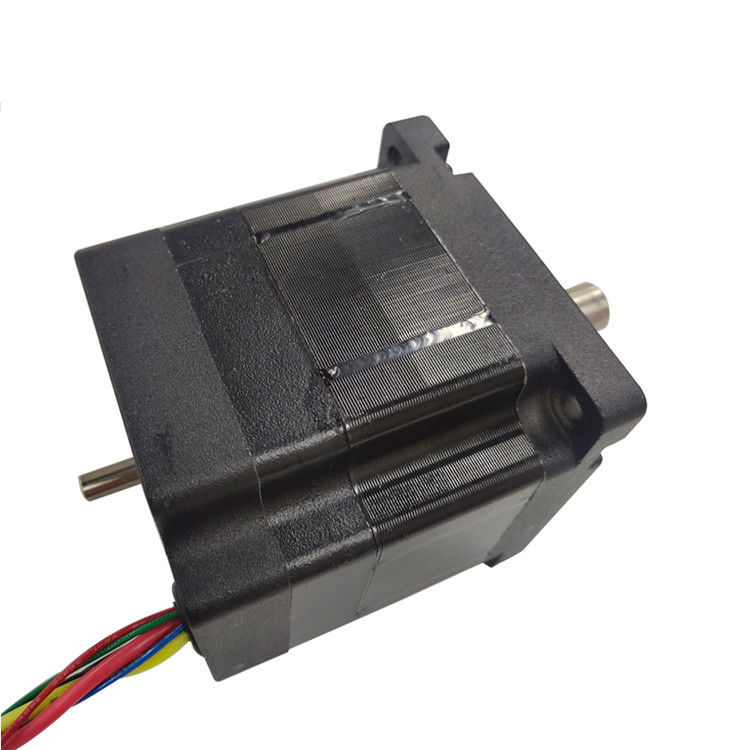

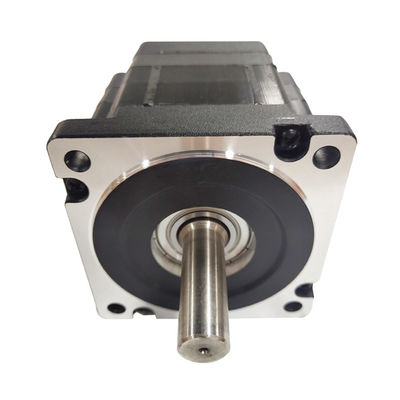

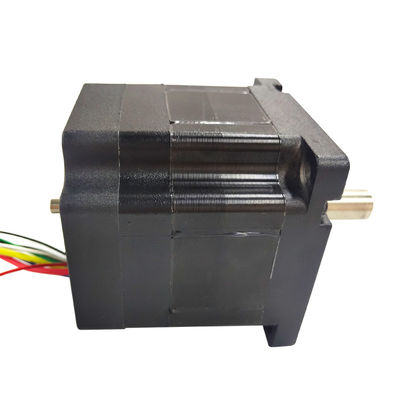

0.7N.m 220W 86mm square Brushless Dc Motor 48VDC 3000RPM for Turkish barbecue machine
General Specification of 86mm dc brushless dc motor FL86BLS71-48V-30220B-3
| (Item) | (Specification) |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 220N ＠20mm form the flange |
| Max.axial force | 60N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
-48V-30220B-3
Electrical Specifications of nema34 brushless dc motor,used for Turkish barbecue machine :
FL57STH56-2008A-C
| Model FL86BLS71-48V-30220B-3 | ||||||
| Specification | Unit | JK86BLS58 | JK86BLS71 | JK86BLS84 | JK86BLS98 | JK86BLS125 |
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 8 | ||||
| Rated Voltage | VDC | 48 | ||||
| Rated Speed | Rpm | 3000 | ||||
| Rated Torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 |
| Rated Current | Amps | 3 | 6.3 | 9 | 11.5 | 18 |
| Rated Power | W | 110 | 220 | 330 | 440 | 660 |
| Peak Torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 | 6.3 |
| Peak Current | Amps | 9 | 19 | 27 | 35 | 54 |
| Back E.M.F | V/Krpm | 13.7 | 13 | 13.5 | 13.7 | 13.5 |
| Torque Constant | N.m/A | 0.13 | 0.12 | 0.13 | 0.13 | 0.13 |
| Rotor Inertia | g.c㎡ | 400 | 800 | 1200 | 1600 | 2400 |
| Body Length | mm | 71 | 84.5 | 98 | 111.5 | 138.5 |
| Weight | Kg | 1.5 | 1.9 | 2.3 | 2.7 | 4 |
| Sensor | Honeywell | |||||
| Insulation Class | B | |||||
| Degree of Protection | IP30 | |||||
| Storage Temperature | -25～+70℃ | |||||
| Operating Temperature | -15～+50℃ | |||||
| Working Humidity | 85% RH | |||||
| Working Environment | Outdoor (No Direct Sunlight), No Corrosive Gas, No Flammable Gas, No Oil Mist, No Dust | |||||
| Altitude | 1000m or less | |||||
Dimensions:FL86BLS71-48V-30220B-3
Hybrid stepper motor/brushless DC motor/stepper driver/BLDC driver/closed loop stepper motor/gear reducer stepper motor/gear reducer brushless DC motor/spindle motor and VFD/AC servo motor kit/DC motor/coupling/pully and so on.
The common products includes stepper motor,closed loop stepper motor,ac servo motor,spindle motor,stepper driver,BLDC driver,planetary gearbox stepper motor,linnear stepper motor,cnc parts,dc motor and so on.
As below:
We are manufacturer,Also make customized motor as your requirements.
