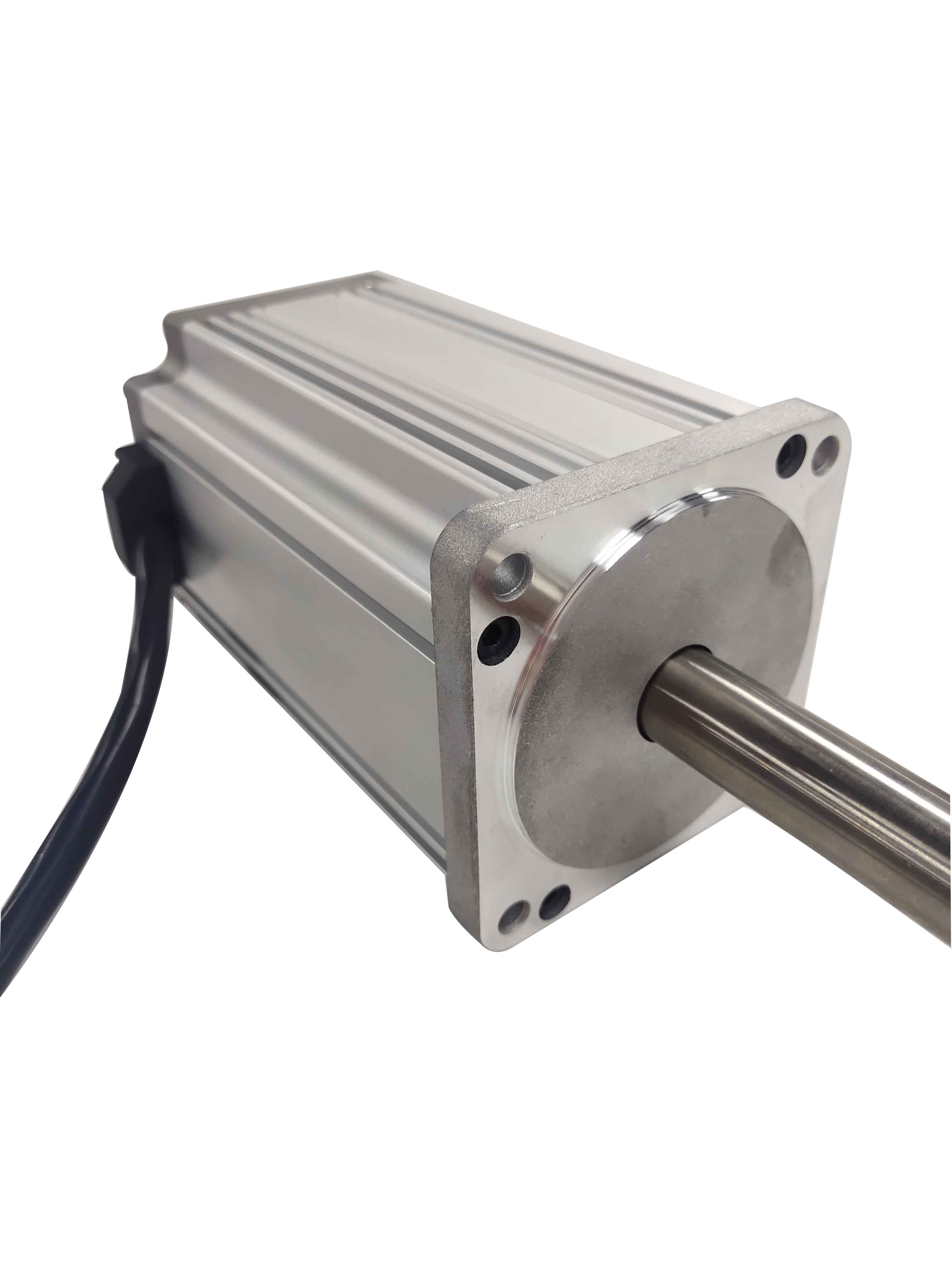

Double And Single Shaft 80mm Brushless Dc Electric Motor for chenille yarn spinning machine

Double And Single Shaft 80mm Brushless Dc Electric Motor for chenille yarn spinning machine

Double And Single Shaft 80mm Brushless Dc Electric Motor for chenille yarn spinning machine
video
Double And Single Shaft 80mm Brushless Dc Electric Motor for chenille yarn spinning machine
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK80BL132-01-X001B
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: USD50-USD38
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Product Name: BLDC Motor Rated Speed: 2100rpm
Frame Size: 80mm Power: 263W
No Load Speed: 2600rpm Rated Torque: 1.2N.m
Nominal Voltage: 310V Typical Applications: Chenille Spinning Machines
Phase: 3phase
High Light:

JK80BL132-01-X001B

,

chenille yarn spinning machine motor

Brushless DC motor double and single shaft 80mm for chenille yarn spinning machine






Electrical Specification of 80mm chenille spinning machines spare parts :
    Model
Specification Unit JK80BLS01 JK80BLS02 JK80BLS03 JK80BLS04
Number Of Phase Phase 3
Number Of Poles Poles 4
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.35 0.7 1.05 1.4
Rated Current Amps 3 5.5 8 10.5
Rated Power W 110 220 330 440
Peak Torque N.m 1.05 2.1 3.15 4.2
Peak Current Amps 9 16.5 24 31.5
Back E.M.F V/Krpm 13.5 13.3 13.1 13
Torque Constant N.m/A 0.13 0.127 0.126 0.124
Rotor Inertia g.c㎡ 210 420 630 840
Body Length mm 78 98 118 138
Weight Kg 1.4 2 2.6 3.2
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity 85% RH
Working Environment Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude 1000米或以下



The drawing of 80mm BLDC motor:

(unit = mm)

Double And Single Shaft 80mm Brushless Dc Electric Motor for chenille yarn spinning machine 0

Double And Single Shaft 80mm Brushless Dc Electric Motor for chenille yarn spinning machine 1



The product details of High speed chenille yarn machine with servo motor:

Double And Single Shaft 80mm Brushless Dc Electric Motor for chenille yarn spinning machine 2

Double And Single Shaft 80mm Brushless Dc Electric Motor for chenille yarn spinning machine 3



Application area:

 chenille yarn spinning machine

Double And Single Shaft 80mm Brushless Dc Electric Motor for chenille yarn spinning machine 4

Double And Single Shaft 80mm Brushless Dc Electric Motor for chenille yarn spinning machine 5

Double And Single Shaft 80mm Brushless Dc Electric Motor for chenille yarn spinning machine 6
