Common Nema 34 Geared Stepper Motor 8.7N.M 2 Phase Ratio 10:1 CE Certificated

Common Nema 34 Geared Stepper Motor 8.7N.M 2 Phase Ratio 10:1 CE Certificated

  • Common Nema 34 Geared Stepper Motor  8.7N.M 2 Phase Ratio 10:1 CE Certificated
  • Common Nema 34 Geared Stepper Motor  8.7N.M 2 Phase Ratio 10:1 CE Certificated
Common Nema 34 Geared Stepper Motor  8.7N.M 2 Phase Ratio 10:1 CE Certificated
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK86HS115-6004SG10
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $50 - 80 / Pieces
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 PCS/MONTH
Contact Now
Detailed Product Description
Phase: 2 PHASE Type: Hybrid
Step Angle: 1.8° Holding Torque: 8.7N.m
Current / Phase: 6A Body Length: 160mm
High Light:

gear reduction motor

,

planetary stepper motor



Ratio 10:1 Common Gearbox For 8.7N.m NEMA34 2Phase Stepper Motor



Stepper motors are known for their accurate positioning capabilities and high torque delivery at low speeds, but they require careful sizing to ensure the motor matches the load and application parameters, to minimize the possibility of lost steps or motor stalling. Adding a gearbox to a stepper motor system can improve the motor’s performance by decreasing the load-to-motor inertia ratio, increasing torque to the load, and reducing motor oscillations.



Genaral Specification:

Housing Material Metal
Bearing at Output Ball Bearings
Max.Radial Load(12mm from flange) ≤350N
Max.Shaft Axial Load ≤100N





Electrical Specification:



Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  ( °) (L)mm A Ω mH N.m No. Kg.cm g.cm Kg
JK86HS115-6004 1.8 115 6.0 0.6 6.5 8.7 4 2.4 2700 3.8
JK86HS115-4208 1.8 115 4.2 0.9 6 8.7 8 2.4 2700 3.8





Gearbox Specifications:



Ratio 3 5 7.5 10 15 18 20 25 30 50 60 75 100 120 150 200
Number of gear trains 1 2 3
Length(L) mm 42&60 60
Rated Torque 30N.m
Peak Torque 45N.m

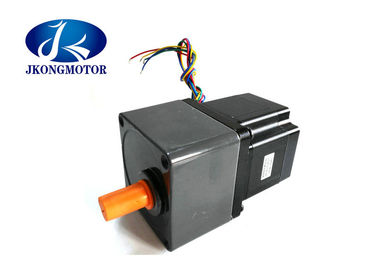

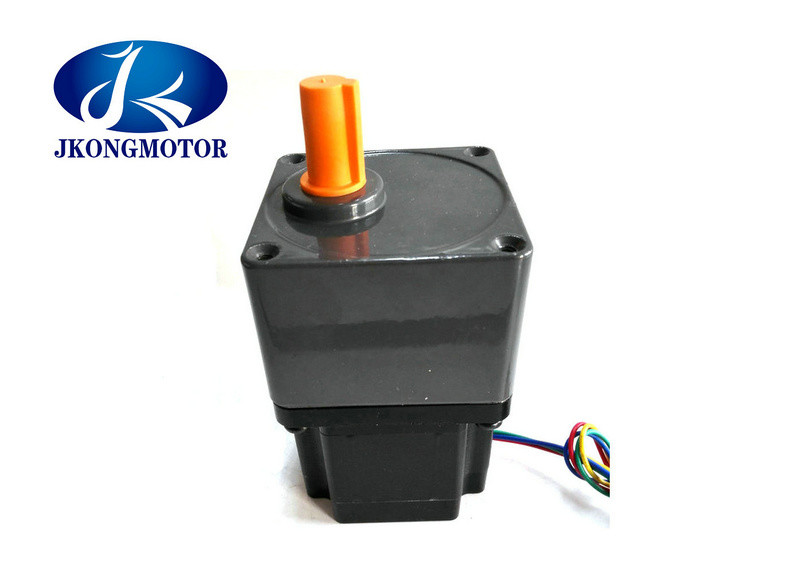

Common Nema 34 Geared Stepper Motor  8.7N.M 2 Phase Ratio 10:1 CE Certificated 0Common Nema 34 Geared Stepper Motor  8.7N.M 2 Phase Ratio 10:1 CE Certificated 1

FAQ(Q=Question, A=Answer)

Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.



Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.



Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q:What's your lead time?
A:Generally speaking, our regular standard product will need 15-25days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders.



Q:When will you reply after got my inquiries?
A:We will response within 24 hours once get your inquires.



Q:What certifications do you have?
A:We currently have CE and ROSH certifications.

Q:Can you send me your price list?
A:Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.
