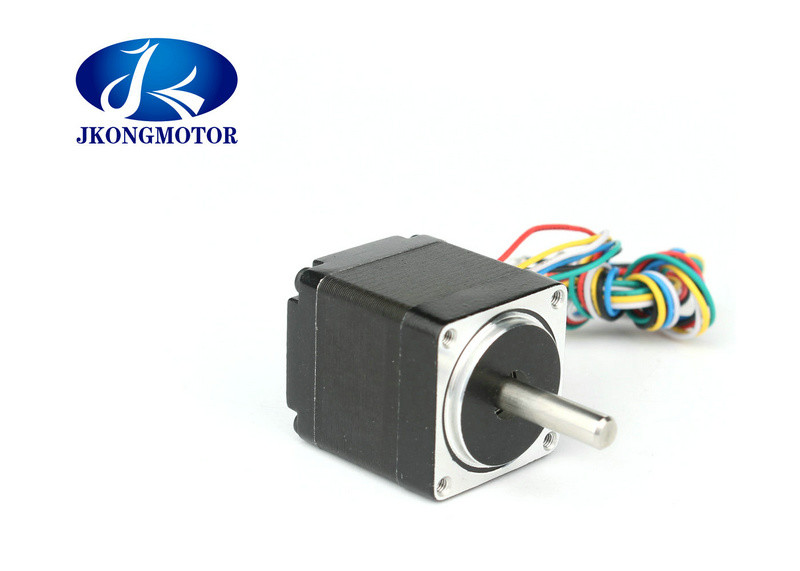

Micro Hybrid Stepper Motor Nema11 Bipolar 0.67A 8.5OZ-IN 28*28*32mm 4 Wires

Micro Hybrid Stepper Motor Nema11 Bipolar 0.67A 8.5OZ-IN 28*28*32mm 4 Wires

Micro Hybrid Stepper Motor Nema11 Bipolar 0.67A 8.5OZ-IN 28*28*32mm 4 Wires
video
Micro Hybrid Stepper Motor Nema11 Bipolar 0.67A 8.5OZ-IN 28*28*32mm 4 Wires
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK28HS32-0674
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$4.9~US$8
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Leads: 4 Current: 0.67A
Holding Torque: 600g.cm Motor Length: 32mm
Weight: 0.11kg Step Angle: 1.8°
High Light:

micro stepper motor

,

nema stepper motor

Micro Hybrid Stepper Motor Nema11 Bipolar 0.67A 8.5OZ-IN 28*28*32mm 4 Wires

1.Genaral Specification:

Item Specifications
Step Angle 1.8°
Step Angle Accuracy ±5%(full step,no load)
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N



2.Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Rotor Inertia

Motor

Weight

  ( °) (L)mm A Ω mH g.cm No. g.cm Kg
JK28HS32-0674 1.8 32 0.67 5.6 3.4 600 4 9 0.11



Matching Stepper motor Driver: JK0220

3.Dimensions: (Unit=mm)
Micro Hybrid Stepper Motor Nema11 Bipolar 0.67A 8.5OZ-IN 28*28*32mm 4 Wires 0

Micro Hybrid Stepper Motor Nema11 Bipolar 0.67A 8.5OZ-IN 28*28*32mm 4 Wires 1Micro Hybrid Stepper Motor Nema11 Bipolar 0.67A 8.5OZ-IN 28*28*32mm 4 Wires 2



Stepper Motor Advantages

  • Low cost for control achieved
  • High torque at startup and low speeds
  • Ruggedness
  • Simplicity of construction
  • Can operate in an open loop control system
  • Low maintenance
  • Less likely to stall or slip
  • Will work in any environment
  • Can be used in robotics in a wide scale.
  • High reliability
  • The rotation angle of the motor is proportional to the input pulse.
  • The motor has full torque at standstill (if the windings are energized)
  • Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
  • Excellent response to starting/stopping/reversing.
  • Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
  • The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
  • It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
  • A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

Stepper Motor Applications

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
