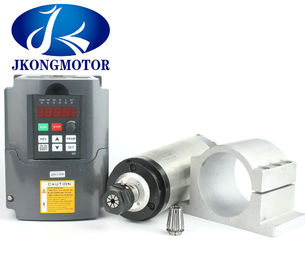

ER16 Water Cooled Spindle CNC Motor , 110V / 220V Inverter Kit Φ80 1.5KW

ER16 Water Cooled Spindle CNC Motor , 110V / 220V Inverter Kit Φ80 1.5KW

  • ER16 Water Cooled Spindle CNC Motor , 110V / 220V Inverter Kit Φ80 1.5KW
  • ER16 Water Cooled Spindle CNC Motor , 110V / 220V Inverter Kit Φ80 1.5KW
ER16 Water Cooled Spindle CNC Motor , 110V / 220V Inverter Kit Φ80 1.5KW
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: Φ80 1.5KW ER16
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$ 110~US$125
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 3000 pcs/month
Contact Now
Detailed Product Description
Speed: 1-24000 R/min Power: 1.5kw
Voltage: 110v / 220v / 380v Current: 8A
Frequency: 400HZ Weight: 4.5kg
High Light:

air cooled spindle motor

,

cnc spindle motor



Φ80 1.5KW ER16 Water Cooled CNC Spindle Motor & Inverter Kit 110V / 220V / 380V



CHANGZHOU JKONGMOTOR CO., LTD sells 2 types of spindle motors for CNC machine, wood carving/engraving machine, which are air cooled type spindle motor from 800W to 7.5kW and water cooled spindle motor from 1.5kW to 6kW. They features with simple and compact configuration, stable performance, reasonable price, high precision bearings, long service life and high speed to 24000rpm. Working at 3 phase 300Hz/400Hz 380V AC power supply, need to be equipped with VFD to use.



Electrical Specification:



ER16 Water Cooled Spindle CNC Motor , 110V / 220V Inverter Kit Φ80 1.5KW 0

Matching inverter: 1.5kw inverter



Spindle motor features:

1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.



Provide:

1. water cooling:800w,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2. air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw



Model Speep (RPM)

Power

(KW)

Voltate

(V)

current

(A)

frequency
(HZ)

weight

(KG)

cool Phase
JK2 Φ65 *208 1-2.4 1.5 220 8 400 3.2 air 3
JK3 Φ80*200 1-2.4 1.5 220 8 400 3.7 air 3
JK6 Φ80*160 1-2.4 1.5 220 7 400 4 water 3
JK7Φ80*170 1-2.4 1.5 220 8 400 4.5 water 3



Accessories:
We also have spindle motor matching inverter(VFD), collet , gripper etc.

If you need other kinds of parts, please don't hesitate to contact us.



Dimensions: (Unit=mm)

Φ80 ER11 WATER COOLED:

ER16 Water Cooled Spindle CNC Motor , 110V / 220V Inverter Kit Φ80 1.5KW 1

ER16 Water Cooled Spindle CNC Motor , 110V / 220V Inverter Kit Φ80 1.5KW 2

ER16 Water Cooled Spindle CNC Motor , 110V / 220V Inverter Kit Φ80 1.5KW 3ER16 Water Cooled Spindle CNC Motor , 110V / 220V Inverter Kit Φ80 1.5KW 4



TIPS:

The spindle motor of woodworking engraving machine is an important component of woodworking engraving machine. The advantages and disadvantages of the spindle motor directly affect the processing speed and accuracy of the engraving machine. How to select high-quality spindle motor is very important. ATO summarizes the main points of woodworking engraving machine spindle selection for the reference of users:

1. If we pursue the efficiency of woodworking engraving machine, we should not only have a high speed, but also a large amount of knives. For example, when processing solid wood, we need a spindle motor with a power of more than 3KW.

2. Whether the spindle motor of woodworking engraving machine adopts high-precision bearings or not, if it does not use high-precision bearings, the performance is that the spindle motor overheated after long-term high-speed rotation, which affects the service life of the spindle motor.

3. Whether the spindle of woodworking engraving machine rotates at different speeds, especially at high speeds, the sound is uniform and harmonious.

4. Whether the radial force of the principal axis of woodworking engraving machine is applied. The main reference is whether the material with hard texture can be cut at high speed. Some spindle motors can only cut hard materials at very low speed, otherwise the performance of the motor will be seriously lost, which will affect the accuracy of the spindle after a period of time, or even cause faults.
