Closed Loop Stepper Motor Nema 23 57mm Cnc Servo Motor 2.8N.M High Torque For Cnc Router

Closed Loop Stepper Motor Nema 23 57mm Cnc Servo Motor 2.8N.M High Torque For Cnc Router

  • Closed Loop Stepper Motor Nema 23 57mm Cnc Servo Motor 2.8N.M High Torque For Cnc Router
  • Closed Loop Stepper Motor Nema 23 57mm Cnc Servo Motor 2.8N.M High Torque For Cnc Router
  • Closed Loop Stepper Motor Nema 23 57mm Cnc Servo Motor 2.8N.M High Torque For Cnc Router
  • Closed Loop Stepper Motor Nema 23 57mm Cnc Servo Motor 2.8N.M High Torque For Cnc Router
  • Closed Loop Stepper Motor Nema 23 57mm Cnc Servo Motor 2.8N.M High Torque For Cnc Router
Closed Loop Stepper Motor Nema 23 57mm Cnc Servo Motor 2.8N.M High Torque For Cnc Router
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK57HS112-4204BFED-0.35M
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$78.5~US$83
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Shaft: Single Leads: 4
Current: 4.2A Holding Torque: 2.8N.m
Step Angle: 1.8 Degree Encoder: 1000 Ppr
Type: Closed Loop Stepper Motor Kit Usage: Automatic Industry,CNC Router
High Light:

closed loop motor

,

nema stepper motor



Nema23 57mm Closed Loop Stepper Motor System With 2.8N.m High Holding Torque




1. Genaral Specification of nema 23 stepper loop stepper motor kit:

 Item  Specifications
 Step Angle  1.8°
 Temperature Rise  80℃max
 Ambient Temperature  -20℃~+50℃
 Insulation Resistance  100 MΩ Min. ,500VDC
 Dielectric Strength  500VAC for 1minute
 Shaft Radial Play  0.02Max. (450g-load)
 Shaft Axial Play  0.08Max. (450g-load)
 Max. radial force  75N (20mm from the flange)
 Max. axial force  15N




2. Electrical Specification of CNC parts:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  ( °) (L)mm A Ω mH N.m No. g.cm g.cm Kg
JK57HS41-4204 BFED-0.35M 1.8 41 4.2 0.3 0.7 0.55 4 250 150 0.65
JK57HS56-4204 BFED-0.35M 1.8 56 4.2 0.4 1.2 1.1 4 350 280 0.98
JK57HS76-4204 BFED-0.35M 1.8 76 4.2 0.6 1.8 1.8 4 600 440 1.1
JK57HS82-4204 BFED-0.35M 1.8 82 4.2 0.7 2.5 2.2 4 1000 600 1.2
JK57HS112-4204 BFED-0.35M 1.8 112 4.2 0.9 3.8 3.1 4 1200 800 1.4

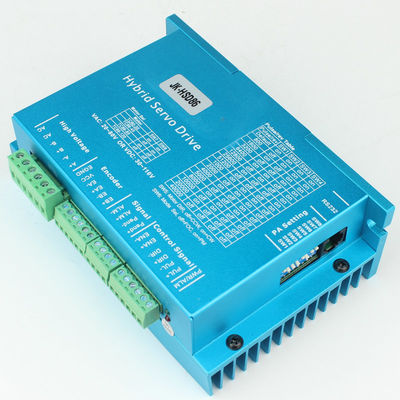

3. Matching Stepper motor Driver: JK-HSD57

  •  Step and direction control
  •  Closed position loop for no loss of movement synchronization
  •  Operating voltage: 20-80 VDC
  •  Load based output current of 0.1 - 10 A
  •  High torque at starting and low speed
  •  No torque reservation
  •  High stiffness at standstill
  •  Significantly reduced motor heating
  •  Smooth motor movement and extra low motor noise
  •  Quick response, no delay and zero settling time
  •  No loss of steps; no hunting; no overshooting
  •  Plug-and-play and no tuning


4. Drawing of nema23 closed loop stepper motor systerm

Unit=mm


Closed Loop Stepper Motor Nema 23 57mm Cnc Servo Motor 2.8N.M High Torque For Cnc Router 0




6. Applications:
Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.

The common products include stepper motor,dc motor,brushless dc motor,linear stepper motor,stepper driver,bldc driver,stepper motor with planetary gearbox,power supply,spindle motor,coupling,pulley and so on.

Closed Loop Stepper Motor Nema 23 57mm Cnc Servo Motor 2.8N.M High Torque For Cnc Router 1
