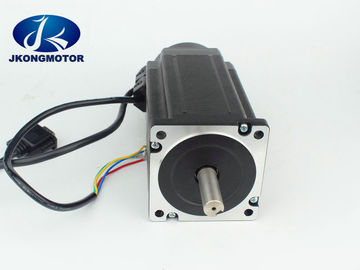

Name: Low Speed Nema 34 Closed Loop Stepper Motor 8.5N.M Holding Torque Stepper Driver With Encoder For CNC Machine
Brand: Jkongmotor
SKU: JK86HS115-6004YBJED-0.35M
Price: 83 USD
Availability: InStock
Rating: 4.5 (141 reviews)

Home Products Closed Loop Stepper Motor

Low Speed Nema 34 Closed Loop Stepper Motor 8.5N.M Holding Torque Stepper Driver With Encoder For CNC Machine

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jkongmotor
Certification:	CE, ROHS,ISO9001
Model Number:	JK86HS115-6004YBJED-0.35M

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	US$83~US$100
Packaging Details:	with export carton . big quantity with pallet
Delivery Time:	For samples , 7-15 days / For batch , 15-25days
Payment Terms:	T/T , paypal , Western Union, L/C
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Shaft:	14mm D Shaft	Leads:	4
Current:	6.0A	Holding Torque:	8.5N.m
Motor Length:	115	Encoder:	1000 Pluse
High Light:	stepper motor closed loop control , nema stepper motor

8.5N.m Holding Torque Nema34 Closed Loop Stepper Motor System /cnc servo motor

1. Genaral Specification of stepper motor driver kit:

Item	Specifications
Step Angle	1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	820VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	220N (20mm from the flange)
Max. axial force	60N

2. Electrical Specification of closed loop stepper motor kit:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

N.m

No.

Kg.cm

g.cm

JK86HS115-6004 YBJED-0.35M

1.8

115

0.36

3.8

8.5

2.4

2700

4.3

3. Matching Stepper motor Driver: JK-HSD86

Step and direction control
Closed position loop for no loss of movement synchronization
Operating voltage: 20-80 VDC
Load based output current of 0.1 - 10 A
High torque at starting and low speed
No torque reservation
High stiffness at standstill
Significantly reduced motor heating
Smooth motor movement and extra low motor noise
Quick response, no delay and zero settling time
No loss of steps; no hunting; no overshooting
Plug-and-play and no tuning

4. Drawing of 8.5N.m nema 34 closed loop stepper motor:

Low Speed Nema 34 Closed Loop Stepper Motor 8.5N.M Holding Torque Stepper Driver With Encoder For CNC Machine 0
