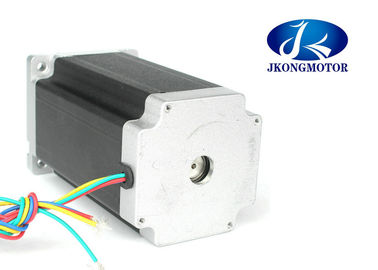

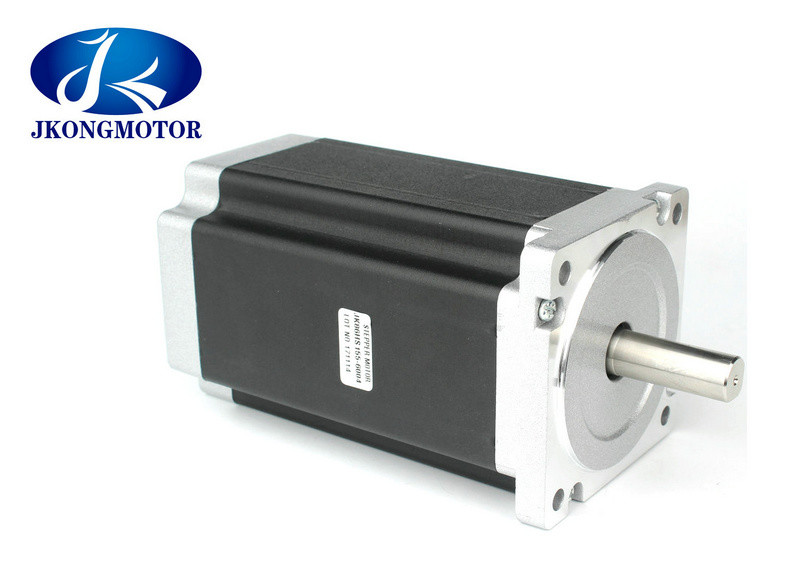

Nema34 High Torque Stepper Motor 3.4N.m - 13N.m For Textile Equipment

Nema34 High Torque Stepper Motor 3.4N.m - 13N.m For Textile Equipment

Nema34 High Torque Stepper Motor 3.4N.m - 13N.m For Textile Equipment
video
Nema34 High Torque Stepper Motor 3.4N.m - 13N.m For Textile Equipment
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: NEMA34 JK86HS
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$16~US$45
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Shaft: D Shaft / Round Shaft / Keyway Shaft Leads: Unipolar And Bipolar Stepper Motor
Current: 2A - 6A Holding Torque: 3.4N.m -- 13N.m
Motor Length: 67mm - 155mm Weight: 1.7KG - 5.4KG
Step Angle: 1.8 Degree Stepper Motor Phase: 2 Phase
High Light:

micro stepper motor

,

nema stepper motor

Nema34 High Torque Stepper Motor 3.4N.m - 13N.m For Textile Equipment


1.Stepper Motor Hybrid Genaral Specification:

  • Item : Specifications
  • Step Angle :  1.8°
  • Temperature Rise : 80℃max
  • Ambient Temperature :  -20℃~+50℃
  • Insulation Resistance  : 100 MΩ Min. ,500VDC
  • Dielectric Strength :  820VAC for 1minute
  • Shaft Radial Play :  0.02Max. (450g-load)
  • Shaft Axial Play :  0.08Max. (450g-load)
  • Max. radial force :  220N (20mm from the flange)
  • Max. axial force :  60N
  • Step Angle : 1.8 degree



 2.Hybrid Step Motor Electrical Specification:

Model No.

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  (L)mm A Ω mH N.m No. Kg.cm g.cm Kg
JK86HS68-5904 67 5.9 0.28 1.7 3.4 4 0.8 1000 1.7
JK86HS68-2808 67 2.8 1.4 3.9 3.4 8 0.8 1000 1.7
JK86HS78-5504 78 5.5 0.46 4.0 4.6 4 1.2 1400 2.3
JK86HS78-4208 78 4.2 0.75 3.4 4.6 8 1.2 1400 2.3
JK86HS97-4504 97 4.5 0.66 3.0 5.8 4 1.7 2100 3.0
JK86HS97-4008 97 4.0 0.98 4.1 4.7 8 1.7 2100 3.0
JK86HS100-6004 100 6.0 0.36 2.8 7.0 4 1.9 2200 3.1
JK86HS115-6004 115 6.0 0.6 6.5 8.7 4 2.4 2700 3.8
JK86HS115-4208 115 4.2 0.9 6.0 8.7 8 2.4 2700 3.8
JK86HS126-6004 126 6.0 0.58 6.5 6.3 4 2.9 3200 4.5
JK86HS155-6004 155 6.0 0.68 9.0 13.0 4 3.6 4000 5.4
JK86HS155-4208 155 4.2 1.25 8.0 12.2 8 3.6 4000 5.4



Nema34 High Torque Stepper Motor 3.4N.m - 13N.m For Textile Equipment 0


Matching Stepper motor Driver: JKD7208S OR JKD2060AC

3. 1.8 Step Motor Dimensions: (Unit=mm)
Nema34 High Torque Stepper Motor 3.4N.m - 13N.m For Textile Equipment 1
 Nema34 High Torque Stepper Motor 3.4N.m - 13N.m For Textile Equipment 2
4.Wiring Diagram:
Nema34 High Torque Stepper Motor 3.4N.m - 13N.m For Textile Equipment 3
5.Customized

  • Stepper motor
  • Stepper motor with brake
  • Stepper motor with gearbox
  • Linear stepper motor

Nema34 High Torque Stepper Motor 3.4N.m - 13N.m For Textile Equipment 4



7.Stepper Motor Applications

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
