Detailed Product Description
Type: 6 Leads Servo Actuator Motor Stepper Angle: 1.8 Dregee
MOQ: 10pcs Size: Nema 8 11 14 17 23 24 34 42 52 Linear Stepper Motor
Holding Torque: Customized Motor Diameter: 20mm To 130mm
Motor Length: Customized Usage: Actuator, Liquid Packaging Machine
Related Parts: Gearbox / Brake / Encoder / Integrated Servo Motor
Highlight:

110mm diameter electric actuator motor

,

5N.m electric actuator motor

,

6 leads servo actuator motor

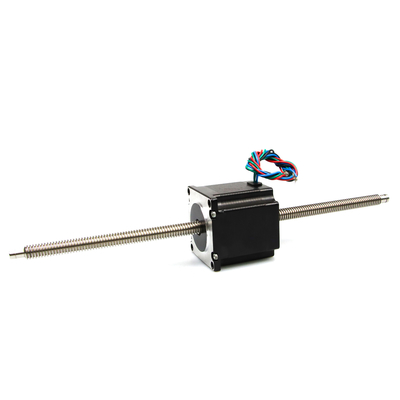

Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor
Product Description:



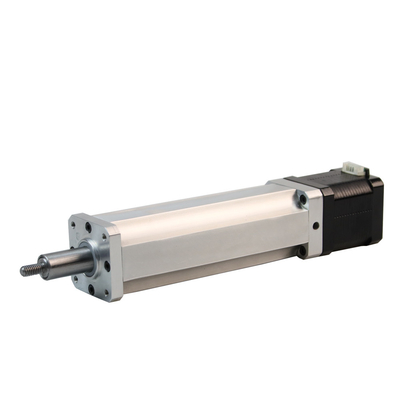

An actuator is a simple device that can not complete a task without being told to do so, and a servo actuator is 'smart' in that it can accept an input signal and go to that position on it's own. It's actually fairly simple, but this distinction can cause some.



While 12VDC linear actuators are ideal and more common with moving lighter loads in home, office, and industrial automations, 24 volt electric actuators are often manufactured with a higher force rating or faster speed while drawing less current.



Due to simple magnetic properties and no mechanical conversion, a linear motor offers precise and fast linear force. Stepper motors, on the other hand, have quite complex functionality due to the involvement of mechanical conversion and, most importantly, the introduction of multiple steps in the process.



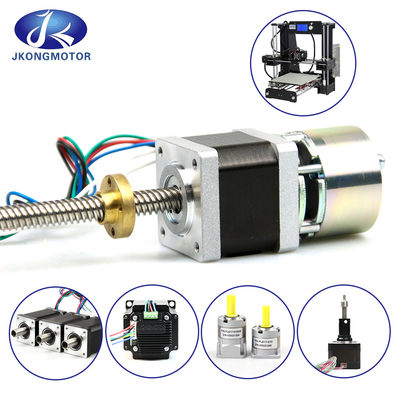

There are four types of linear stepper motors by Jkongmotor: external drive linear stepper motors (including T-type lead screw and ball screw), Captive linear stepper motors and Non-Captive linear stepper motor, and the connector, gearbox, encoder, brake orintegrated driver are optional.



Features:

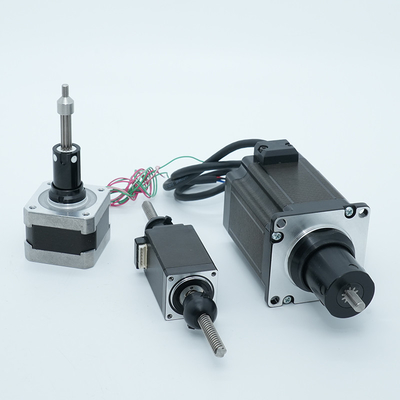

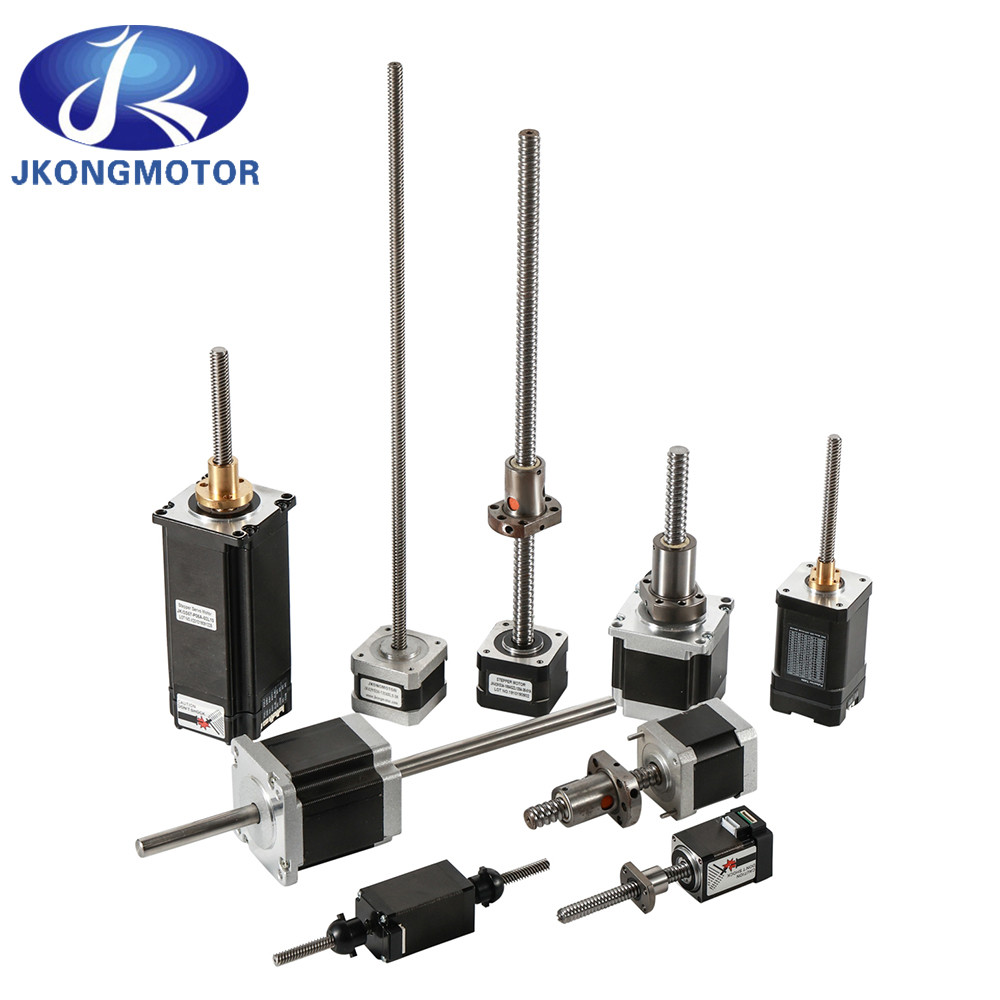

Product Name: Jkongmotor Linear Stepper Motor with Lead Screw

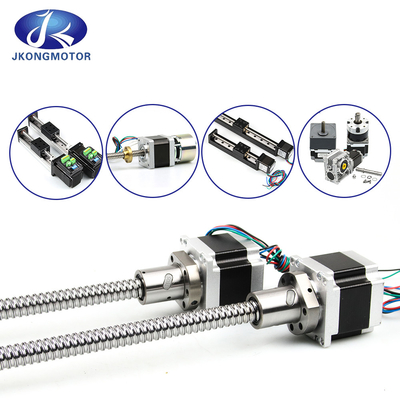

Type: Ball Screw Stepper Motor / External Linear Stepper Motor / Non-captive linear stepper motor / captive linear stepper motor

Size: Nema 8 / 11 / 14 / 16 / 17 / 23 / 24 / 34 stepping motor

Leads No.: 4leads

Product Type: 2 Phase Hybrid Stepping Motor

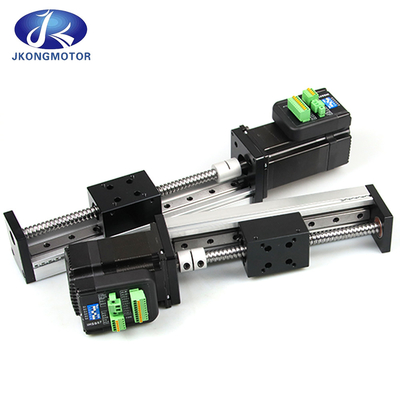

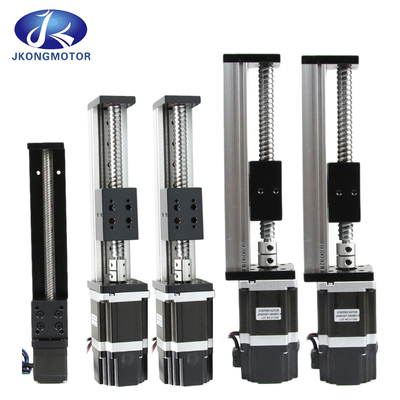

Customized Parts: Connector, Gearbox, Encoder, Brake, Integrated driver...


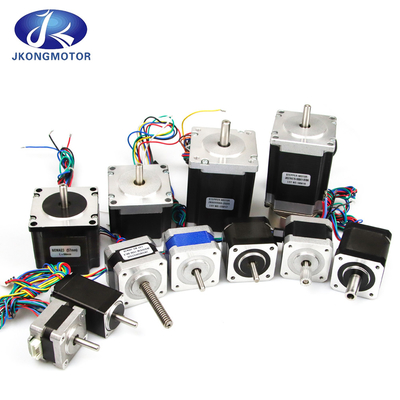

Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.



Nema 8 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Mass
( °) (L)mm A Ω mH g.cm No. kg
JK20HS30-0604 1.8 30 0.6 18 3.2 180 4 0.06
JK20HS33-0604 1.8 33 0.6 6.5 1.7 200 4 0.07
JK20HS38-0604 1.8 38 0.6 10 5.5 300 4 0.08
JK20HS42-0804 1.8 42 0.8 5.4 1.5 400 4 0.09



Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 0Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 1Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 2

Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 3



Nema 11 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Rotor Inertia Mass
( °) (L)mm A Ω mH g.cm No. g.cm2 Kg
JK28HS32-0674 1.8 32 0.67 5.6 3.4 600 4 9 0.11
JK28HS32-0956 1.8 32 0.95 2.8 0.8 430 6 9 0.11
JK28HS45-0956 1.8 45 0.95 3.4 1.2 750 6 12 0.14
JK28HS45-0674 1.8 45 0.67 6.8 4.9 950 4 12 0.14
JK28HS51-0956 1.8 51 0.95 4.6 1.8 900 6 18 0.2
JK28HS51-0674 1.8 51 0.67 9.2 7.2 1200 4 18 0.2

nema 11 linear equation	1	nema 11 linear e	google 26	✖	nema 11 linear encoderJkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 5Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 6

Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 7





Nema 14 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH g.cm No. g.cm g.cm2 Kg
JK35HS28-0504 1.8 28 0.5 20 14 1000 4 80 11 0.13
JK35HS34-1004 1.8 34 1 2.7 4.3 1400 4 100 13 0.17
JK35HS42-1004 1.8 42 1 3.8 3.5 2000 4 125 23 0.22

Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 8Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 9Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 10

Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 11

Nema 17 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH kg.cm No. g.cm g.cm2 Kg
JK42HS25-0404 1.8 25 0.4 24 36 1.8 4 75 20 0.15
JK42HS28-0504 1.8 28 0.5 20 21 1.5 4 85 24 0.22
JK42HS34-1334 1.8 34 1.33 2.1 2.5 2.2 4 120 34 0.22
JK42HS34-0406 1.8 34 0.4 24 15 1.6 6 120 34 0.22
JK42HS34-0956 1.8 34 0.95 4.2 2.5 1.6 6 120 34 0.22
JK42HS40-0406 1.8 40 0.4 30 30 2.6 6 150 54 0.28
JK42HS40-1684 1.8 40 1.68 1.65 3.2 3.6 4 150 54 0.28
JK42HS40-1206 1.8 40 1.2 3 2.7 2.9 6 150 54 0.28
JK42HS48-0406 1.8 48 0.4 30 25 3.1 6 260 68 0.35
JK42HS48-1684 1.8 48 1.68 1.65 2.8 4.4 4 260 68 0.35
JK42HS48-1206 1.8 48 1.2 3.3 2.8 3.17 6 260 68 0.35
JK42HS60-0406 1.8 60 0.4 30 39 6.5 6 280 102 0.5
JK42HS60-1704 1.8 60 1.7 3 6.2 7.3 4 280 102 0.5
JK42HS60-1206 1.8 60 1.2 6 7 5.6 6 280 102 0.5



Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 12Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 13Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 14

Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 15

Nema 23 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. g.cm g.cm2 Kg
JK57HS41-1006 1.8 41 1 7.1 8 0.48 6 250 150 0.47
JK57HS41-2008 1.8 41 2 1.4 1.4 0.39 8 250 150 0.47
JK57HS41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
JK57HS51-1006 1.8 51 1 6.6 8.2 0.72 6 300 230 0.59
JK57HS51-2008 1.8 51 2 1.8 2.7 0.9 8 300 230 0.59
JK57HS51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
JK57HS56-2006 1.8 56 2 1.8 2.5 0.9 6 350 280 0.68
JK57HS56-2108 1.8 56 2.1 1.8 2.5 1 8 350 280 0.68
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
JK57HS64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
JK57HS76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
JK57HS76-3006 1.8 76 3 1 1.6 1.35 6 600 440 1.1
JK57HS76-3008 1.8 76 3 1 1.8 1.5 8 600 440 1.1
JK57HS82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
JK57HS82-4008 1.8 82 4 0.8 1.8 2 8 1000 600 1.2
JK57HS82-4204 1.8 82 4.2 0.7 2.5 2.2 4 1000 600 1.2
JK57HS100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3
JK57HS112-3004 1.8 112 3 1.6 7.5 3 4 1200 800 1.4
JK57HS112-4204 1.8 112 4.2 0.9 3.8 3.1 4 1200 800 1.4

Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 16Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 17Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 18

Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 19

Nema 24 Stepper Motor Parameters:

Model No. Wiring Diagram Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
(L)mm A Ω mH N.m No. g.cm g.cm2 Kg
JK60HS56-2008 Unipolar 56 2 1.8 3 1.17 8 700 300 0.77
Parallel 2.8 0.9 3.6 1.65
Tandem 1.4 3.6 14.4 1.65
JK60HS67-2008 Unipolar 67 2 2.4 4.6 1.5 8 900 570 1.2
Parallel 2.8 1.2 4.6 2.1
Tandem 1.4 4.8 18.4 2.1
JK60HS88-2008 Unipolar 88 2 3 6.8 2.2 8 1000 840 1.4
Parallel 2.8 1.5 6.8 3.1
Tandem 1.4 6 27.2 3.1
JK60HS100-2008 Unipolar 100 2 3.2 6.4 2.8 8 1100 980 1.7
Parallel 2.8 1.6 6.4 4
Tandem 1.4 6.4 25.6 4
JK60HS111-2008 Unipolar 111 2 4.4 8.3 3.2 8 1200 1120 1.9
Parallel 2.8 2.2 8.3 4.5
Tandem 1.4 8.8 33.2 4.5

Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 16Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 17Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 18

Nema 34 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. Kg.cm g.cm2 Kg
JK86HS68-5904 1.8 67 5.9 0.28 1.7 3.4 4 0.8 1000 1.7
JK86HS68-2808 1.8 67 2.8 1.4 3.9 3.4 8 0.8 1000 1.7
JK86HS78-5504 1.8 78 5.5 0.46 4 4.6 4 1.2 1400 2.3
JK86HS78-4208 1.8 78 4.2 0.75 3.4 4.6 8 1.2 1400 2.3
JK86HS97-4504 1.8 97 4.5 0.66 3 5.8 4 1.7 2100 3
JK86HS97-4008 1.8 97 4 0.98 4.1 4.7 8 1.7 2100 3
JK86HS100-6004 1.8 100 6 0.36 2.8 7 4 1.9 2200 3.1
JK86HS115-6004 1.8 115 6 0.6 6.5 8.7 4 2.4 2700 3.8
JK86HS115-4208 1.8 115 4.2 0.9 6 8.7 8 2.4 2700 3.8
JK86HS126-6004 1.8 126 6 0.58 6.5 6.3 4 2.9 3200 4.5
JK86HS155-6004 1.8 155 6 0.68 9 13 4 3.6 4000 5.4
JK86HS155-4208 1.8 155 4.2 1.25 8 12.2 8 3.6 4000 5.4

Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 16Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 17Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 18

Jkongmotor OEM ODM Nema 8 11 14 17 23 24 34 12v 24v Linear Stepper Motor Electric 4 6 Leads Servo Actuator Motor 26



Nema 42 Stepper Motor Parameters:

        Model Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. kg.cm g.cm2 Kg
JK110HS99-5504 1.8 99 5.5 0.9 12 11.2 4 3 5500 5
JK110HS115-6004 1.8 115 6 0.48 7 12 4 4 7100 6
JK110HS150-6504 1.8 150 6.5 0.8 15 21 4 5.9 10900 8.4
JK110HS165-6004 1.8 165 6 0.9 14 24 4 6.6 12800 9.1
JK110HS201-8004 1.8 201 8 0.67 12 28 4 7.5 16200 11.8



Nema 52 Stepper Motor Parameters:

     Model No. Operating Voltage Rated Current Resistance Inductance Holding Torque Noload Frequency Starting Frequency Mass Motor Length
VDC A Ω mH N.m No. g.cm Kg mm
JK130HS173-6004 80~325 6 0.75 12.6 25 25000 2300 13.3 173
JK130HS229-6004 80~325 6 0.83 13.2 30 25000 2300 18 229
JK130HS257-7004 80~325 7 0.73 11.7 40 23000 2200 19 257
JK130HS285-7004 80~325 7 0.66 10 50 23000 2200 22.5 285
